Certification:ISO,UL,CE,RoHS

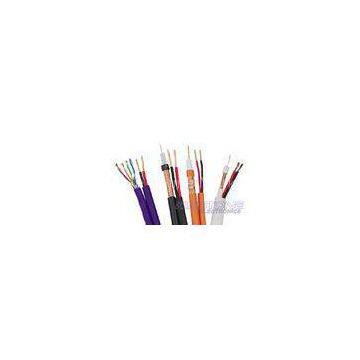

Foamed PE CCTV Coaxial Cable 75 Ohms RG59/U for Construction , CMP Rated Cable
Quick Detail:
RG59/U CCTV Coaxial Cable 16×0.001\"/0.25mm CCA power conductor 20AWG BC conductor 95% BC braiding 2C/18AWG BC Power Foamed PE Insulation 75 Ohms cctv cable PVC- UL Listed,CMR Rated RoHS Compliant 500FT 1000FT Spool or Pull Box MOQ: 30 KMDescription:
KT0711 RG59/U CCTV Coaxial Cable 95% BC Braiding + 2C/18AWG BC Siamese CMR
RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect
for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.
KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in
practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
KINGTONE’S price of RG59/U is not high although our quality is really high.
Applications:
Suitable for signal transmission
■ CCTV
■ Local Area Network
■ Digital video
■ Monitor/VDT display
■ Security Camera
Specifications:
| KT0711 RG59/U CCTV Coaxial Cable 95% BC Braiding + 2C/18AWG BC Siamese CMR | ||
| Construction Parameters: | ||
| Inner Conductor | 0.032\"/0.81mm/20AWG | Bare Copper |
| Dielectric | 0.144\"/3.66±0.05mm | Foamed Polyethylene |
| First Shield | Nom. 0.161\"/4.10mm | Braiding |
| Strands | 0.005\"/0.12mm | Bare Copper |
| % Coverage | 95 nom | |
| Jacket | 0.236\"/6.00±0.1mm | PVC (NEC RISER) |
| Power Wire Conductor | 2-18 AWG 16×0.001\"/16×0.254mm | Bare Copper |
| Power wire Diameter of insulation | 0.075\"/1.90mm | PVC (NEC RISER) |
| Power Wire Color Code | Red,Black | |
| Jacket | 0.199\"/5.05±0.1mm | PVC (NEC RISER) |
| * 1 Pair of wire twisted | ||
| Application | For Use in Intermediate CCTV | Run Lengths |
| Limited Length | Typical run length up to | 1000 feet |
| Electrical Characteristics: | ||
| Capacitance | 52±1 pF/m | 17±0.3 pF/ft |
| Impedance | 75±3 Ω | |
| Resistance at 20℃ | 35.73 Ohms/KM | 11.72 Ohms/KM |
| Return loss | between 5 and 1000MHz | > 22dB |
| Velocity of Propagation | 0.85 | |
| Shielding Effectiveness(>dB) | 70 | |
| Max Operating Voltage(KVMS) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 75℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
|
Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 1 | 0.45 | 1.48 |
| 10 | 0.90 | 2.95 |
| 50 | 1.90 | 6.23 |
| 100 | 3.20 | 10.49 |
| 200 | 4.00 | 13.11 |
| 400 | 4.90 | 16.07 |
| 700 | 8.60 | 28.20 |
| 900 |
