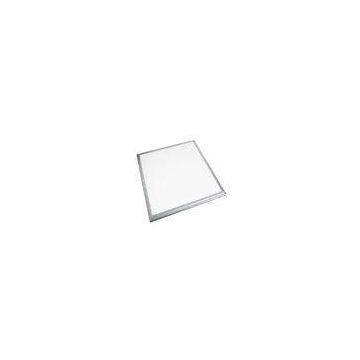

3400 lm 40W SMD Square LED Panel Light 600x600 Led Ceiling Panel
Description:
I. Main Technical Parameter:
2. Rated Output Power:40W
3. Rated Input Voltage:85-265 Vac；
4. Rated Input Frequency Range:47～63Hz；
5. Power Factor:≥0.93；
6. Ra>75 Material: Pure Aluminum Lamp Size: L1197*W297*T13MM
7.. Rated Initial Luminous Flux: 3400 lm；
8. Rated Color Temperature:3000-6000K
7. LED chip: 96pcs SMD5630
8. Gross weight: 3.5 kg per pcs
9. Packing size: L1370*W200*H380MM (5pcs Inside)
Product advantages
1. super slim designing
2. convenient for installing , can be both installed by hanging and surface mounted
3. high light output effiency
4 low maitance .
5. fast delivery , 2 weeks after order confirmation
|
Item |
Name |
Qty |
Unit |
Remark |
|
1 |
600*600 LED Panel Light |
1 |
pc |
This packing list for panel light only. |
|
2 |
User Manual |
1 |
pc |
|
|
3 |
Driver |
1 |
pc |
Maintenance:
1. Pls don’t repair or maintain the product under condition user lack of professional person or knowledge for circuit,especially in absence of necessary equipment, avoiding extending the damage or breaking down the important components.
2. As there is high voltage circuit inside the product, during maintenance pls don’t dissemble or hand touch the PCB under power-on condition. There is isolation protection layer on circuit board, pls don’t touch acidic materials when you disassemble the circuit board, like sweat etc. Please use plate washer water to clean the circuit board when there is stain or dust.
Producing steps and aging pictures:
