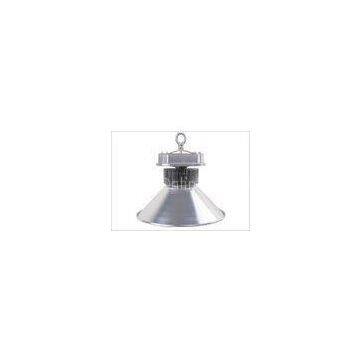

200W Industrial LED High Bay Lighting Bridgelux meanwell 5 years warranty for Badminton Hall by Ch

FOB Price

Negotiable / Meter

1 Meter(Min.Order)

Supply Ability 0 Meter / Meters per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YICAI/OEM		Place of Origin	China
Model Number	YC-HB200-01

Product Description

Delivery Time:10-20days
Certification:CE/ROHs/SAA/C-Tick

Energy Saving 200W COB LED High Bay Lights Fixtures for Shoping Mall

Quick Detail:

Model Name: YC-HB200-01Thermal Conductivity of thermal grease: >5.0W/m.kColor temperature:3000K/4000K/5000K/6500KCRI: Ra> 80Lumen Effiency:above 90lumens/wattInput Voltage: AC90 ~ 305VBeam Angle: 45° /90°/ 120°LED Brand: American Bridgelux 45milWarranty: 5 YearsProtection Rate: IP42/IP65Finishing: Silver

Product features:

►High Ra COB LED with Bridgelux LED chip,ultra bright

►AC90V to 305V Input voltage are available to meet different installation condition.

►Adopt Taiwan Meanwell power to ensure the lamp work better

►Changeable beam angle and CCT 2700K-6500K available

►Extremely light weight to ensure safety use and installation

►Available with aluminum reflectors with different beam angles

►Unique patented thermal management design to ensure excellent heat dissipation

and long lifespan of LEDs

►IP65 rating are available for various applications

►Highly energy saving, 60% over metal halide lamp

►Environmental-friendly, no UV, no Mercury or other Hazardous substances

Certification:

Parameters:

Lamp Material	Aluminum	Color index	Ra>80
Beads type	COB	CCT	2700~6500k
Brand chip	Bridgelux	IP Rating	IP42/IP65
Input voltage	90~305V	Storage temperature	-20°C~+45°C
Frequence	47~63Hz	Surface temperature	50°C(test in 25°C)
Power Factor	>0.95	Lifespan	50,000 hours
Power consumption	200W	Lamp Size	Φ500*565mm
Power efficiency	>92%	Box Size	25.525.543.5cm
Beam Angle	45°/90°/120°	QTY/Box	1PCS
Luminance	17500±50lm	Box Weight	7.3KG

Lamp size:

Package of reflector :

Reflector angle	45°	90°	120°
Lamp size	Φ420*250mm	Φ500*190mm	Φ500*140mm
Box size	444440cm	535325cm	535334cm
Box weight	2KG	2.2KG	2.3KG
QTY/Box	10PCS	10PCS	10PCS

Product Details :

Application:
Warehouses & Production workshops
Shopping malls & Indoor stadiums
Toll and petrol stations and other industrial and commercial lighting purposes

Company :

1. More than 5 years of professional experience in lighting developments and services

2. Own in-house automatic production workshop, heatsink materials and module production workshop.

3. With own international R&D team and most advanced mechanical equipments

4. Achieved new height in LED industry by developing new technology on heat dissipation which is recognized the most troublesome weakness on LED applications .

5. All of Botanica LED Lights are CE , RoHS approved

6. 3 years warranty, good after-sale services

7. Fast delivery ,OEM,ODM service available

8. Currently in process of expanding its R&D capabilities to continue to innovate and engineer new cutting edge LED illumination products .
