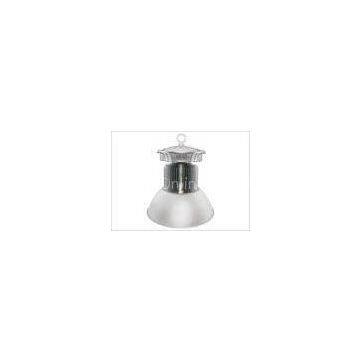

CRI 80 150W Water Resistant CREE LED High Bay Fixtures 130LM/W basketball hall lighting

Delivery Time:10-20days
Certification:CE/ROHs/SAA/C-Tick/TUV

CRI 80 150W Water Resistant CREE LED High Bay Fixtures 130LM/W basketball hall lighting by factory


Quick Detail:


►Model Name: YC-HB150-02
►CCT: 2700 ~7500K
►CRI: Ra> 80
►Beam Angle: 45° /90°/ 120°
►Power Consumption: 150W
►LED Brand: CREE/OSRAM
►Warranty: 5 Years
►Input Voltage: AC90 ~ 305V
►Luminance: 13400±50lm
►Protection Rate: IP42/IP65
►Cover: Optical Lens
►Radiator:fin heatsink


Key Features:

LEDs from together with Meanwell drivers , provide up to 5 years warranty Unique patented thermal management design to ensure low LED junction temperature . Extremely light weight to enhance the safety use and installation Available products with maximum power up to 400w, ultra-high luminous output of up to 38000lm. Both IP40 and IP65 , prismatic and aluminum reflectors with different optical bean angles are available . Easy installation and maintenance , dust prevention , longer lifetime with high lumen maintenance

Design Innovation

Build-in heatpipe technology

excellent heat conduction performance by incorporating mature heatpipe technology inside the heatsink . Phase change materials(PCM) inside the heatpipe helps to effectively bring the heat away from LED module

Fold-Fin Heatsink(FFH) technology

Formed by thin aluminum sheets and pressed into the desired fin structures by fully automated machines . Different parts of heatsink are then soldered together via a high temperature furnace Resulting in a heatsink with large total surface area and exremely light weight

Extra-safe fixture design

Additional stainless steel sling provides extra safe mechanism especially for vibrating environment Build-in bolt design to strongly bond together different housing parts .

Lamp Material	Aluminum	Color index	Ra>80
Beads type	SMD	CCT	2700~6500k
Brand chip	Cree/Osram	IP Rating	IP42/IP65
Input voltage	90~305V	Storage temperature	-20°C~+45°C
Frequence	47~63Hz	Surface temperature	50°C(test in 25°C)
Power Factor	>0.92	Lifespan	50,000 hours
Power consumption	150W	Lamp Size	Φ445*540mm
Power efficiency	>93%	Box Size	34*34*36cm
Beam Angle	60°/90°/120°	QTY/Box	1PCS
Luminance	13400±50lm	Box Weight	5.1KG

Lamp size:

Product Details :





Installation:




Certification:




Application:

Trade Terms

Sample can be delivered in 5days

Production Lead Time: 5-25days

Mini Order Quantity

MOQ: 10pc/model

Payment Item:

Payment: T/T only, Western Union or Moneygram are welcomed

Shipping Items:

Deliver by air cargo or courier for your orders.

Target market

Especially in EU and North America, Buyer from worldwide are warmly welcomed.
