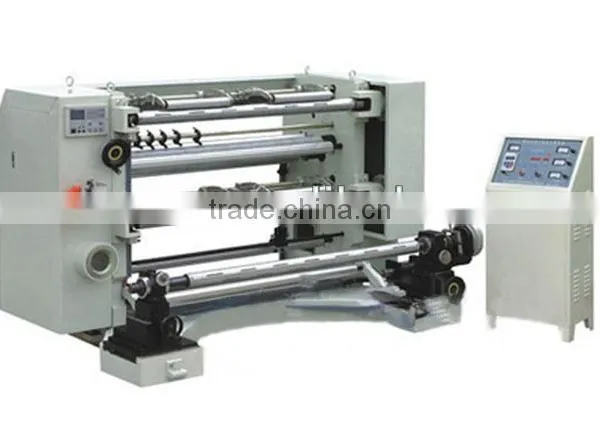

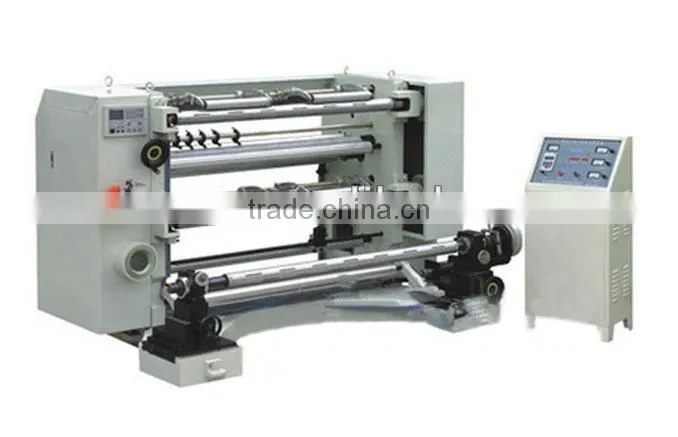

Help CenterLFQ-1300mm Vertical Slitting Machine
Related Products
-
VGB-1 Moisture and Oxygen Control Glove Box for Laboratory ResearchesNegotiableMOQ: 1 Set -
LZ-1 Leather Strip Cutting Machine/rubber Strip Cutting MachineUS$ 880 - 890MOQ: 1 Set
-
LZ-2 Dual Purpose Leather Strip Cutting MachineUS$ 360 - 380MOQ: 1 Set
-
JK-150 Cold\thermo-cutting MachineNegotiableMOQ: 1 Set
-
Lizhou LZ-2 Shoe Cutting Machine/leather Slitting MachineUS$ 360 - 380MOQ: 1 Set
Specifications
sub-cut materials: aluminum foil, material film, web and other major sub-cutLFQ-1300mm Vertical Cutting Machine
1: parameters:
1, sub-cut materials: aluminum foil, material film, web and other major sub-cut 3, packing sheet
2, the machine model: 1300mm
3, cut effective width :20-1300 mm
4, mechanical speed: 160m/min
5, sub-shear speed: 150m/min
6, Unwinding diameter: 600mm 3 "inflatable-axis
7, Unwinding magnetic brake: 50N.M 1 parts (Ryan, brake and Sweden)
8, rewinding diameter: 2X 450mm 3 "tile-type inflatable axis (Ryan glare Machinery)
9, the main motor: 3.5kw motor (speed motor)
10, winding magnetic powder clutch: 50N.M
11, Selvage device: 550W three-phase fan
12, Transmission: Synchronous belt and triangular belt
13, guide shaft: 80 hard alloy aluminum roll HV700-type
14, mechanical structure: cast iron and steel
15, correction range: 120mm error of ± 0.5mm
16, the working voltage: three-phase four-wire system AC380V
17, Machine Weight: 2000KG
