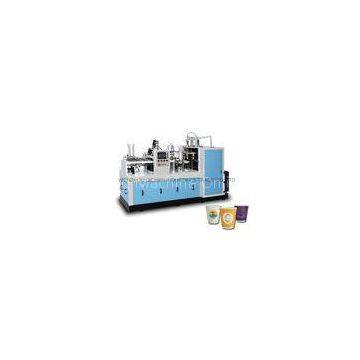

60 - 70 Pc/min Tea Cup Manufacturing Machine With Sever - motor Control / Gear Drive

Delivery Time:In 30 working days
Certification:SGS, CE

40 pc/minTea Cup Making Machine For Coffee House

Quick details:

Paper Cup Size	50 ml-350 ml (mold exchangeable)
Productivity	60-70 Pc/min
Control System	PLC Control & Sever-motor Control
Transmission system	Gear-Motor
Drive Way	Gear Drive
Lubrications system	Self-Lubrication system
after-sales service	Free training, Engineers available to service machinery overseas

Technical Specification:

Model	ZBJ-A12 Automatic Paper Cup Machine
Paper Cup Size	3oz-12oz (mold exchangeable)
Raw Material	One-side PE (polyethylene) film coated / laminated paper
Suitable paper weight	140-350gsm
Rated Productivity	40-50 pcs/ minute
Power Source	220V/380V 50Hz or other required
Total Power	4.8KW
Total Weight	1600KG
Package Size(L x W x H)	2800 x1300 x1700mm
Working Air Source	0.4Mpa, Air Out-put:0.6 m3/minute
Making Double PE coated paper cups, need to buy an air compressor

The part we used VS normal one:

1) We use 125 type gear box, which has two years warranty.

Normally, 100 type gear box is used.

125 type is much bigger and stronger than 100 type. 100 type gear box, if used for one year, is easier to have problem.

2) We use 1:30 100 type Speed reducer

Normally 1:20 80 type speed reducer is used.

1:30 100 type speed reducer is more stable than 1:20 80 type speed reducer.

The speed reducer and the gear box are very important to the machine. They control the whole machine, if there are some problems with these two parts, then, you have to change the gear box and speed reducer. In this case, the machine should be taken apart, because they are inside the machine. It takes much time, and sometimes you cannot install the machine correctly. So it is necessary to use better gear box and speed reducer.

3) We useφ30 import steel shaft for the machine.

Normally φ25 steel shaft is used.

φ30 steel shaft has longer life and is resistant to wear.

4. We use multilayer suckers for the paper taking

Normally single sucker is used.

Multilayer sucker is much powerful and make the process successful. Multilayer sucker has long life; when the top is wornout, just cut the top.

Competitive Advantage:

1. We use two gear boxes, 125 type and 100 type
2. We use Gear-motor instead of speed reducer and motor
3. We use PLC control and serve-motor control
4. We use 3 Cam to control the folding process.
5. We use thre times paper feeding process.
6. We use self-lubrication for ZBJ-X12 Paper cup forming machine

Applications:

Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc

Making Process:

Printing Step: The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the cups.

Cutting Step: In this step, you should decide the size of the cup, so we can cut the paper fan in decided size.

Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.

Packing:

FCL: paper cup machine with wood tray and plastic film.

LCL: paper cup machine with wood box and plastic film.

We will spraying oil in paper cup machine for keeping rust away
