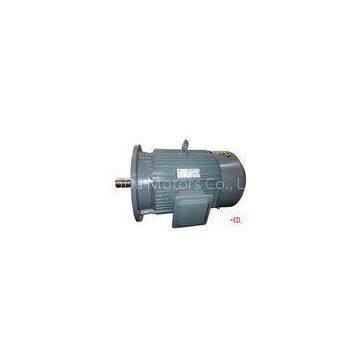

100 Horsepower 600 Rpm 10 Pole Totally Enclosed Three Phase Asynchronous Motor

Ambient

Temperature range:

-20~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC /DIN

Efficiency Level

IE1

Phase

Three-phase

Frame Size

H180~355 Cast iron frame

Protect Feature

Totally Enclosed

Output Range

11~375KW

Voltage

380V

Frequency

40-60HZ (50-60HZ constant power)

Poles

2, 4 , 6 ,8,10

Protection Class

IP54/IP55

Insulation

F/B

Mounting

IMV1 /IM3011

Cooling

IC411

Duty

S1

Connection

” Y\" type for 3kW and downwards, \"D\" type for 4kW and upwards

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers\' requirements

Greasing Type

Frame Size

Poles

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H180~280

2

20000 h

4,6

40000 h

Regreasing

H315~355

2

30000 h

4,6

60000 h

Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

8pole /750 rpm

10pole /600 rpm

kW

HP

kW

HP

kW

HP

kW

HP

kW

HP

YP2-180M

22

30

18.5

25

11

15

YP2-180L

22

30

15

20

YP2-200L

30

40

30

40

18.5

25

15

20
