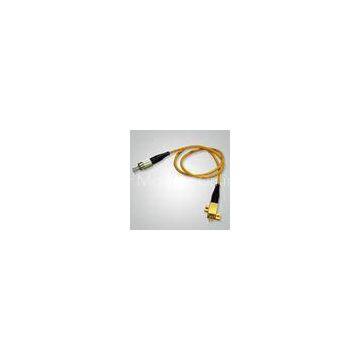

976nm 9W Wavelength Stabilized Laser Diode for Laser Pumping

Specifications(25℃)

Symbol

Unit

K976A02RN-9.00W

Optical Data

CW-Output Power

P0

W

9

Center Wavelength

λc

nm

976

Tolerance of λ

-

nm

±0.5

Spectral Width (FWHM)

△λ

nm

<0.7

Temperature Drift of λ

△λ/△T

nm/℃

~0.02

Current Drift of l(1)

△l/△Iop

nm/A

~0.05

Fiber Data(2)

Fiber Core Diameter

Wc

µm

105

Numerical Aperture

N.A.

-

0.22

Fiber Connector

-

-

SMA-905

Electrical Data

Operating Current

Iop

A

12

Threshold Current

Ith

A

0.8

Conversion Efficiency

η

%

45

Slope Efficiency

ηD

W/A

0.8

Operating Voltage

Vop

V

1.8

Reverse Voltage

Vre

V

2.5

Feedback Isolation Data

WavelengthRange

λ

nm

1030-1200

Isolation

-

dB

>30

Others

Operating Temperature

Top

℃

30±5

Storage Temperature

Tst

℃

-20~+70

Expected Lifetime

MTTF

h

>100, 000

Dimensions
(fiber and connector not included)

-

mm
