Certification:CE/ROHs/SAA/C-Tick/TUV

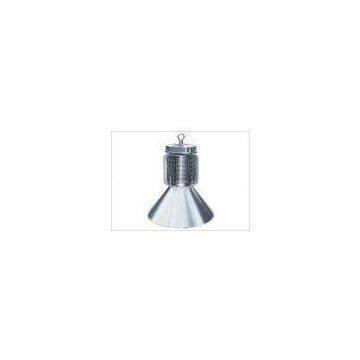

2014 high lumen CE TUV SAA 200W LED High bay Light, Meanwell Driver Bridgelux Chip by China producer
Quick Detail:
Model Name: YC-HB200-01 Color temperature:3000K/4000K/5000K/6500K CRI: Ra> 80 Thermal Conductivity of thermal grease: >5.0W/m.k Beam Angle: 45° /90°/ 120° Input Voltage: AC90 ~ 305V Protection Rate: IP42/IP65 LED Brand:Bridgelux 45mil Lumen Efficiency:above 90 lumens/watt Warranty: 5 Years Finishing: SilverDescription:
200W, Bridgelux Chip, Mean Well Driver COB LED High Bay Light has a unique shape, streamlined and stylish lines which integrate perfectly in modern architecture with highly ornamental value.
Product features:
1.Using single powerful LED(30-200W)as the light source, with unique lighting design of Multi-chip integrated single-module; select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2.The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.
3.The surface of radiator is treated by antiseptic and anodic oxidation; with compact structure and aesthetic appearance.
4.Environment-friendly, no air pollution, no lead-free, no-mercury.
5.With high color rendering index which can show a true color of things for people, kinds of light colors are available, meet the requirement of different environment; clear up the depressive mood caused by lower or higher color temperature compared with conventional lamp, make more comfortable for people\'s eyes which can greatly improve people\'s working efficiency.
6.Adopted advanced constant current controlling techniques; wide voltage range available and global universal; overcome the lighting instability caused by electric network of ballast and noise pollution; avoid the stimulation and tiredness taking from long-time work.
7.Apply for unique surface treatment technology, welldecorated, novel style, easy to install, lower maintenance cost and wide in application.
Certification:
Parameters:
| Lamp Material | Aluminum | Colr index | Ra>80 |
| Beads type | COB | CCT | 2700~6500k |
| Brand chip | Bridgelux | IP Rating | IP42/IP65 |
| Input voltage | 90~305V | Storage temperature | -20°C~+45°C |
| Frequence | 47~63Hz | Surface temperature | 50°C(test in 25°C) |
| Power Factor | >0.95 | Lifespan | 50,000 hours |
| Power consumption | 200W | Lamp Size | Φ500*565mm |
| Power efficiency | >92% | Box Size | 25.5*25.5*43.5cm |
| Beam Angle | 45°/90°/120° | QTY/Box | 1PCS |
| Luminance | 17500±50lm | Box Weight | 7.3KG |
Lamp size:
Package of reflector :
| Reflecotr angle | 45° | 90° | 120° |
| Lamp size | Φ420*250mm | Φ500*190mm | Φ500*140mm |
| Box size | 44*44*40cm | 53*53*25cm | 53*53*34cm |
| Box weight | 2KG | 2.2KG | 2.3KG |
| QTY/Box | 10PCS | 10PCS | 10PCS |
Product Details :
Application:
Warehouses & Production workshops
Shopping malls & Indoor stadiums
Toll and petrol stations and other industrial and commercial lighting purposes
