Low Noise 3 Color Jump Change RGB LED Controller RF 4Keys 12A 12VDC for Light Point Source
Description:
RF 4-key LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection , simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change. Total 11 modes for your choice.

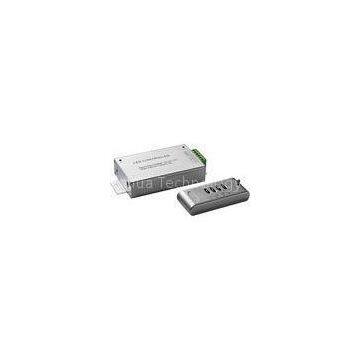

3 Color Changing 12V DC LED RGB Remote Controller Common Cathode 12A , RF 4Keys
Technical parameters
● Working temperature: -20-60 ℃
● Voltage supply: DC5V, 12V, 24V (for orders specify voltage)
● Output: 3 channels
● Connecting mode: common anode or common cathode
● External dimension: L128ΧW65ΧH25 mm
● Net weight: 160.5g
● Gross weight: 204.5g
● Static power consumption: <1 W
● Output current: <4 A (each channel)
● Output power: 5 V: <60W, 12V: <144W, 24V: <288W
|
Item |
Patterns |
remarks |
|
1 |
Static Red |
|
|
2 |
Static Green |
|
|
3 |
Static Yellow |
|
|
4 |
Static Blue |
|
|
5 |
Static Pink |
|
|
6 |
Static cyan |
|
|
7 |
Static white |
|
|
8 |
3 color jump change |
Button B and C is valid |
|
9 |
7 Color jump change |
Button B and C is valid |
|
10 |
3 Color fade change |
Button B and C is valid |
|
11 |
7 Color fade change |
Button B and C is valid |
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Competitive Advantage:
1. Wireless controller using advanced computer control chip
2. Wireless remote control the 12 V battery power
3. The wiring convenient, Simple to use
4. Output low ripple and noise
5. Two year warranty
6. Average working no trouble ＞50, 000 hours
