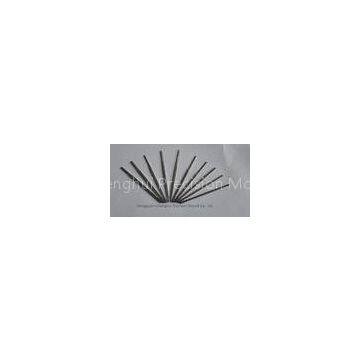

Help CenterCustom Precision Optical Profile Grinding Parts With Tungsten Carbide SKD11 , SKH9
Related Products
-
Optical Profile Grinding Parts Precision Components for Progressive Die / MouldNegotiableMOQ: 1 Set -
High Precision Surface Grinding , Optical Profile Grinding Parts With 80 - 90 HRC HardnessNegotiableMOQ: 1 Piece
-
OEM Customized Metal Precision Parts Cnc and Optical Profile Grinding Parts for Terminal DieNegotiableMOQ: 1 Piece
-
High Speed Metal Progressive Stamping Die And Mold Stripper , InsertNegotiableMOQ: 1 Set
-
Custom High Precision Mold Punch , Guide Pin With Imported SKD11NegotiableMOQ: 1 Piece
Certification:ISO9000:2008
Custom precision punch PG Optical Profile Grinding process Parts for progressive stamping die
1. Material using : imported Tungsten Carbide SKD11,SKH9
2. Size ; According customer requirement
3. Hardness: 80-90 HRC
4. Surface Grinding Precision : 0.002MM
5. Angle Clearness<0.05
6. OEM service
7. MOQ:1 PC acceptable
Production Flow
Heating treatment, Surface grinding , PG profile grinding, Wire cutting EDM, EMD , CNC milling , Milling are the main product process.
Equipment list for proflie grinding parts
|
Dept. |
Equipment |
Origin |
Brand orType |
Tolerance |
Q’TY |
|
Metal Die Department |
PG optical projection grinder |
Japan |
WAIDA SPG - R |
0.001 |
1 |
|
PG optical projection grinder |
Japan |
WAIDA PGX - 2500SP |
0.001 |
1 |
|
|
PG optical projection grinder |
Japan |
135AS/WASION |
0.001 |
1 |
|
|
Mikron High Speed CNC milling |
Switzerland |
HSM500LP |
0.002 |
2 |
|
|
Hyfair grinder |
Taiwan |
614 |
0.001 |
12 |
|
|
Seedtec precision water grinder |
Taiwan |
800*400 |
0.002 |
2 |
|
|
carving machine |
Taiwan |
Daliang |
0.001 |
1 |
|
|
Quality Control Department |
Optical Projector |
Japan |
Nikon |
0.001 |
2 |
|
High gauge |
Switzerland |
200/400/SYLVAC |
0.001 |
1 |
|
|
Comparator tester |
Japan |
Nikon |
0.001 |
7 |
|
|
Hardness tester |
China |
1 |
|||
|
2.5-diemension altimeter |
china |
Wanhao |
0.001 |
1 |
|
|
Microcalliper |
Japan |
Sanfeng |
0.001 |
8 |
Chenghui Precision Mould dedicate to mould field 9 years
Chenghui Precision Mould specialize in precision led lead frame mould , precision progressive stamp die, precision progressive stamp dieparts and precision plastic mould part.
Advanced R&D service and experienced engineer ,your inquire would get prompt responses within 24 hours.
Chenghui Precision Mould have more than 60 professional and skilled technicians ;10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM who were more than five years experiences working in foreign-owned enterprise. These talents ensure our product satisfy customer requirement quickly and our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.
Why choose us?
1. Superior material imported from America,Japan, Sweden.
2. Chenghui Precision Mould have experienced engineer and offer advanced R&D service, your inquire would get prompt responses within 24 hours.
3. Our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding..
4. Each part has been got strictly test and inspect before shipping.
