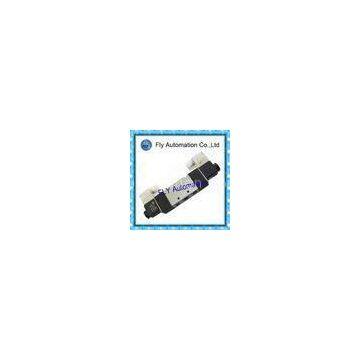

Double Coil 3/8" Aluminum Alloy 4V320-10 5/2 Way Pneumatic Solenoid Valves
US$ 4 - 12
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
FLY AIRTAC
Place of Origin:
China
Model Number:
4V320-08 4V320-10
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Air Preparation Units and Accessories SMC Air Source Treatment Filter CombinationsUS$ 8 - 15MOQ: 1 Piece -
OEM ABS Electromagnetic Induction Coil ReplacementUS$ 8 - 15MOQ: 1 Piece
-
12W 24V Herion Solenoid Electromagnetic Induction Coil 0200,0245,0246,0247US$ 1 - 2MOQ: 1 Box
-
Hand Operated Air Pressure Pneumatic Manual ValveUS$ 8 - 15MOQ: 1 Piece
-
Foot Pedal Operated Air Pressure Pneumatic Manual ValveUS$ 3 - 15MOQ: 1 Piece
Brand Name
FLY AIRTAC
Place of Origin
China
Model Number
4V320-08 4V320-10
Delivery Time:3 working days after receiving the customers\' payment
Certification:CE, ISO9001
Certification:CE, ISO9001
Double Coil 3/8\" Aluminum alloy 4V320-10 5/2 way Pneumatic Solenoid Valves
Model No: 4V320-08 4V320-10
Place of Origin: Zhejiang,China (Mainland)
Power: Pneumatic
Standard or Nonstandard: Standard
Pressure: Low Pressure
Structure: Pilot
Material: Alloy
Temperature of Media: Normal Temperature
Media: Gas
Brand Name: Airtac SMC ASCO
Valve type: 5 port 2 position
Lubrication: Not required
Temperature : -20~70°C
Orifice size: 30.0mm2
Material of body: Aluminum alloy
Fluid: Air
Specification:
| Model |
4V310-08 4V320-08 |
4V330C-08 4V330E-08 4V330P-08 |
4V310-10 4V320-10 |
4V330C-10 4V330E-10 4V330P-10 |
| Fluid | Air(to be filtered by 40pm fillter element) | |||
| Acting | Piloted | |||
| Port size | ln=Out=Exhaust=1/4\" | ln=Out=3/8\" Exhaust=1/4\" | ||
| Orifice size |
25.0mm2 (Cv=1.40) |
18.0mm2 (Cv=1.00) |
30.0mm2 (Cv=1.68) |
18.0mm2 (Cv=1.00) |
| Valve type | 5 port 3 position | 5 port 2 position | 5 port 3 position | 5 port 2 position |
| Operating pressure | 0.15-0.8MPa(21-114psi) | |||
| Proof pressure | 1.5MPa(215psi) | |||
| Temperature °C | -20-70 | |||
| Material of body | Aluminum alloy | |||
| Lubrication | Not required | |||
| Max.frequency | 4 cycle/sec | 3 cycle/sec | 4 cycle/sec | 3 cycle/sec |
| Weight | 4V310-08:310g 4V320-08:400g | 450g | 4V310-10:310g 4V320-10:400g | 450g |
| No. | Item | No. | Item | NO. | Item |
| 1 | Connector | 9 | Wear ring | 17 | Override spring |
| 2 | Coil net | 10 | Bottom cover | 18 | Manual override |
| 3 | Coil | 11 | Fixed screw | 19 | Spring holder |
| 4 | Armature | 12 | Spool spring | 20 | Return spring |
| 5 | Fixed plate | 13 | Bottom cover gasket | 21 | Side cover |
| 6 | Piston | 14 | Spool O-ring | 22 | Springholder |
| 7 | Pilotkit | 15 | Spool | ||
| 8 | Body | 16 |
Piston O-ring |
Flow chart :
