Home > Products > Industrial Touchpad > IP65 Sealed and Ruggedized Round Touchpad with scroll function for Banks

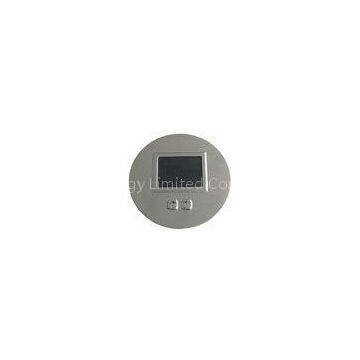

IP65 Sealed and Ruggedized Round Touchpad with scroll function for Banks
- T/T L/C D/P D/A
- 7 days
You May Like
-
Silicone rubber P68 dynamic rated and ruggedized military grade keyboard with 106 key
-
Customized Super slim indestructible keyboard with 81 key durable IP65 waterproof
-
Waterproof Rear panel mounting IP65 Industrial rugged touchpad with 2mm long stroke
-
Industrial backlit illuminated ruggedized keyboard with 83 key dustproof
-
Desktop Movable USB industrial touchpad / kiosk touchpad with numeric keypad
-
Mini size ruggedized keyboard with 47key for rear panel mount metallic keyboard
Product Details
| Brand Name | IKB-MKB | Place of Origin | China | |
| Model Number | K-TEK-A143TP |
Product Description
Certification:CE, FCC, RoHS, IP65, ESD
IP65 customized industrial brushed stainless steel touchpad mouse
Main Features:
1. IP65 Sealed and Ruggedized Round Touchpad
2. Scroll function optional
3. CE, FCC, RoHS, IP65, ESD
1. IP65 dynamic sealed and ruggedized tough touchpad with scroll function (optional)
2. with stainless steel housing protects the electronics module
3. round stainless steel top panel mounted
Application:
A: INDUSTRIAL: Industrial automation, Banks/Kiosks, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses.
B: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc.
C: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
D: MILITARY: Army, Navy, Air force, Marine and Boating etc
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Front Plate |
Quality brushed stainless steel |
|
Touchpad thickness |
1.3 mm PCB thickness inclusive of mylar layer |
|
|
Validated touch width |
46.50mm (max) |
|
|
Validated touch length |
62.50mm (max) |
|
|
Mounting Rack |
Aluminum alloy |
|
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
|
|
Touchpad lifespan |
> 10 Mio times |
|
|
Dimensions |
Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: diameter: 143mm (front panel), |
|
|
Interface |
PS2 and USB both available |
|
|
Electrical |
Power supply |
5V DC+ 10%, |
|
Work current |
4.0 mA (normal) |
|
|
X/Y position sensing resolution: |
1000 points/inch (40 points/mm) |
|
|
X/Y position reporting: |
Relative |
|
|
Tracking speed: |
Maximum 1,016 m/sec |
|
|
Protection level: |
IP65 (front panel) |
|
|
Static Release: |
15 KV (front panel) |
|
|
EMC Standard: |
EN55022(B) |
|
|
Environmental |
Operating temperature: |
-20°C to +60°C |
|
Storage temperature: |
- 40°C to + 70°C |
|
|
Operating RH: |
10%-95% |
|
|
Atmospheric pressure: |
60-106Kpa |
|
|
Reliability |
MTBF |
>50000h |
|
MTTR |
< 30min |
|
|
Touchpad Lifespan |
>10 million actuations |
|
|
OS |
OS is under All windows, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton |
