Specifications：

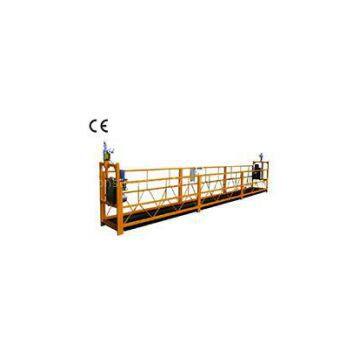

Standard technical datas of Suspended Access Platform:
* Rated capacity:630kg
* Rated speed:9.3m/min
* Voltage-3phase:380V(415V/220V)
* Frequency:50Hz/60Hz
* Power:1.5kw×2
* Hoist:LTD63
* Safety lock:LSL308
* Dia.of wire rope:4×31SW8.3
* Platform size:(2m×3)X0.69mX1.18m
* Weight of suspension jibs:340kg
* Weight of lifting part:Steel 500kg/Aluminum 360kg
* Counter weight:900kg
* 20'GP/package:10sets
Safety Systems
To ensure safe,risk free operation,the platform is fitted with these devices as following
* Service brake incorporated in the LTD hoist
* Over speed LSL type safety lock on second wire rope
* Upper limit switch detector
* Emergency stop
* Emergency descent in the event of current failure
* Phase controller.(option)
* Overload detector integrated in LTD hoist.(option)
* Lower anti- collision bar.(option)
Competitive Advantage:
* Climing Principle:The suspended platform climbs up along the wire rope driven by the hoist.Without wraping up the wire rope,there is no limit on the height of climing in theory.Hoist- Using the “α”structure,the reliability of the hoist is high,and the service life is long.
* Safety rope and safety lock- Two safety ropes are set independently.The suspended platform is set with safety locks.When the platform goes acclivitous,the hoist system gets major faults or ropes are broken off and falling,the safety locks will lock the wire ropes to ensure the safety of the operator and the machine.
* Combination of the basket- According to customers’ requirements,the paltform can be combined in different forms and easy to transport.
* Multiple flexible suspension mechanism- The suspension mechanism is applicable to different types of roofs and conveniently to delivery.
* Convenient and reliable electrical control system- The electrical control system is equipped with protection switchs,operators can choose single- machine operation or two-machine operation system.It is equiped with movable operation box,external power box and the limit equipment against going up.
* Reasonable designed structure and Attractive appearance- The steel structure is applied with thin-wall and rectangle steel pipe,compact and rational designed.
