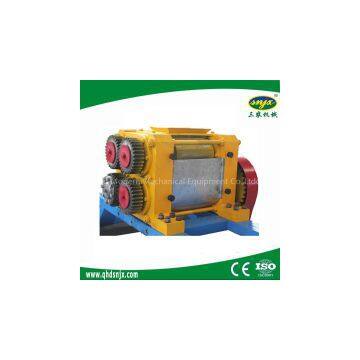

New Type NPK Fertilizer Granule Making Machine

1. 1.     Application

Extrusiongranulator is a new type granulator in fertilizer industry, specially used forpowder materials such as Potassium chloride, Ammonium sulfide, Ammoniumsulphate, Si, Extrusion granulator Ca, Mg and K. Directly using dry-methodextrusion.

1. 2.     Sizeof granules:

Irregular granulesdiameter between 2mm-6mm, with high intensity and novel appearance.

1. 3.     Specification

a.     ZLB-1530

Output: 0.7-1.2 ton/hour

Diameter: 2-4mm

Diameter of the roller: 150mm

Moisture of materials: 2-5%

Power: 18.5kw

b.     ZLB-3030

Output: 1.2-2.0 ton/hour

Diameter: 2-4mm

Diameter of the roller: 300mm

Moisture of materials: 2-5%

Power: 30kw

c.      ZLB-750

Output: 5.0-6.0 ton/hour

Diameter: 2-4mm

Diameter of the roller: 750mm

Moisture of materials: 2-5%

Power: 210kw

4. Brief introduction

Thisequipment is a granulator without drying process in normal temperature .It hasthe characteristics of compact structure, reasonable process, advancedtechnology, non-three-wastes discharge, steadily operation, reliably running,low power consumption, small floor space etc.

SANNONGGranulation Systems are known for their consistently high quality product whilemaintaining a high efficiency screening and crushing circuit which maximizeson-size material and minimizes recycle. This way the power consumption isdecreased while the throughout is increased. Utilizing world leaders incompactor technology uniquely designed and tested granulators and crushers,state of the art screeners, SANNONG extrusion granulation system offeroutstanding performance with any fertilizer.

Sannongsupplies normally includes complete process design and plant layout, completeequipments supply including Crushing machine, Bucket elevator, extrusiongranulator, Crushing and Screening machine, granular polishing machine andmaterials coating machine etc.
