Auto Coil Winding Machine For 2 Poles, 4 Poles and 6 Poles Stator

China Winding Machine Online Market

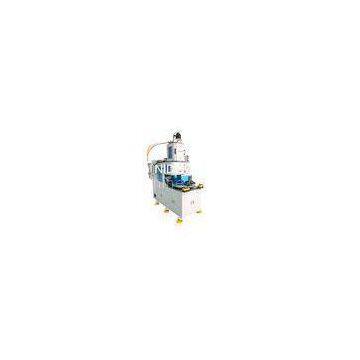

Auto Coil Winding Machine For 2 Poles, 4 Poles and 6 Poles Stator thumbnail-1
Auto Coil Winding Machine For 2 Poles, 4 Poles and 6 Poles Stator photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Nide
Place of Origin:
China
Model Number:
RXL2-160
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Nide
Place of Origin China
Model Number RXL2-160
Delivery Time:35 working days
Certification:None

Auto Coil Winding Machine For 2 poles, 4 poles and 6 poles stator

Quick Detail:

1. Machine model number is RXL2-160
2. Wire diameter range is 0.2mm to 1.2mm.
3. It is high automation and easy for operating.

Description:

This machine is a kind of single-head and double-station automatic winding machine; automatic put the coil into tradsfer former orderly; especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively; parameter could be set in human-machine interface, winding tension is adjustable; obtain continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding,



Technical data:

Wire diameter range

0.2-1.2mm

Fly fork diameter

400mm

Winding head

1

Max stack height

160mm

Max stator OD

210mm

Jump file number

1-7

Max RPM

2200RPM

Air pressure

0.4mpa

Power supply

380V- 50/60HZ 7KW

Weight

1200kg

Dimension

1800 X1100 X2200mm

Competitive advantages:

Variety of application, easy operation.
