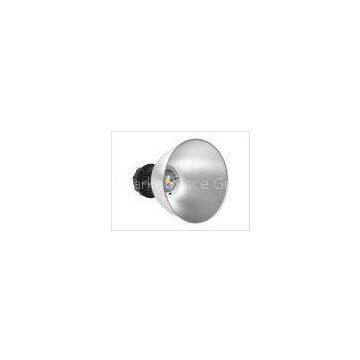

200W LED High Bay Lamps 45 Degree reflector HLG driver IP65 for Super Market Shopping Mall china

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YICAI/OEM		Place of Origin	China
Model Number	YC-HB200-01

Product Description

Delivery Time:10-20days
Certification:CE/ROHs/SAA/C-Tick/TUV

45 Degree Warm White LED High Bay Light Fixtures for Super Market Shopping Mall 200W

Quick Detail:

Model Name: YC-HB200-01 Heatsink:Fin heatsink cooling LED Brand:Bridgelux 45mil Certifications:TUV/CE/ROHS/SAA/C-Tick Color temperature:3000K/4000K/5000K/6500K CRI: Ra> 80 Lumen Efficiency:above 90lumens/watt Thermal Conductivity of thermal grease: >5.0W/m.k Beam Angle: 45° /90°/ 120° Warranty: 5 Years Protection Rate: IP42/IP65 Finishing: Silver Input Voltage: AC90 ~ 305V

Product features:

►High Ra COB LED with Bridgelux LED chip,ultra bright

►AC90V to 305V Input voltage are available to meet different installation condition.

►Adopt Taiwan Meanwell power to ensure the lamp work better

►Unique patented thermal management design to ensure excellent heat dissipation

and long lifespan of LEDs

►Changeable beam angle and CCT 2700K-6500K available

►Extremely light weight to ensure safety use and installation

►Available with aluminum reflectors with different beam angles

►IP65 rating are available for various applications

►Highly energy saving, 60% over metal halide lamp

►Environmental-friendly, no UV, no Mercury or other Hazardous substances

Parameters:

Lamp Material	Aluminum	Color index	Ra>80
Beads type	COB	CCT	2700~6500k
Brand chip	Bridgelux	IP Rating	IP42/IP65
Input voltage	90~305V	Storage temperature	-20°C~+45°C
Frequence	47~63Hz	Surface temperature	50°C(test in 25°C)
Power Factor	>0.95	Lifespan	50,000 hours
Power consumption	200W	Lamp Size	Φ500*565mm
Power efficiency	>92%	Box Size	25.525.543.5cm
Beam Angle	45°/90°/120°	QTY/Box	1PCS
Luminance	17500±50lm	Box Weight	7.3KG

Certification:

Lamp size:

Package of reflector :

Reflecotr angle	45°	90°	120°
Lamp size	Φ420*250mm	Φ500*190mm	Φ500*140mm
Box size	444440cm	535325cm	535334cm
Box weight	2KG	2.2KG	2.3KG
QTY/Box	10PCS	10PCS	10PCS

Product Details :

Our Service:
pre-sales support:
1.We offered technical advises to our customers before buying our led high bay light
2.Help customers to choose suitable product within budget most economy benefit.
3.We offered software customization for our customer a specific usage.
After-sales serverce:
1.We promise our customer more than just two years warrantly service!We provide free

maitenance services including remote configuration,technical consultation,and trouble shooting for our costomer.

2.We promise a life time follow-up service for all the equipment supply by our company.these include continuously improve of system functions and upgrade of system software.

3.We offered training to our customer which include operating and maintenance of our products.

Application:

Warehouses & Production workshops
Shopping malls & Indoor stadiums
Toll and petrol stations and other industrial and commercial lighting purposes
