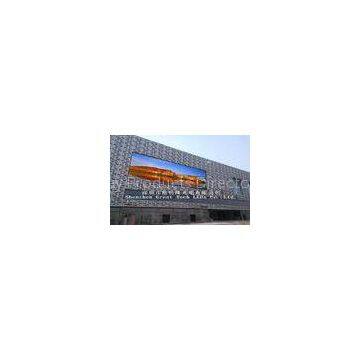

Outdoor SMD LED Display PH10mm IP65 for Large Advertising Video Screen
Product Details:
It is designed for the screen in direct sunshine, low latitude, rainy, hot environment.This is PH10mm in GS7 series with more than 8000cd/m2 brightness and special design aluminum module, aluminum cabinet, unique in the world.It is mainly used for in direct sunshine environment, for example, the screens facing to south or something. IAlso, some rental mode accation, such as stage, event or concert etc. And it is many used for huge size outdoor screens since it has also high waterproof level, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface
Quick Detail:
1. Available models: G7-AB-4S-PH8, G7-RE-4S-PH8,G7-AS-4S-PH6,G5-RE-8S-PH6,G5-AS-8S-PH5 G5-RE-8S-PH5.
2. over 2500HZ refresh rate.
3. Perfect uniformity and no mosaic.
4. Lifespan is up to 100,000 hours.
5. Hanging structure design with gapless connection, quickly installation and dismantling
Description:
1. Light Weight
40KG for one square meter.
2. Die Casting Materials
Aluminum alloy
3. Slim Design
one cabinet size is 960mm x 960mm or any size you want on condition of integral multiple module size.
4. Easy Installation
An average worker can install more than 70 cabinets within one hour W/O tool.
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Specifications:
|
Model No. |
GS8-AB-2S-PH10 |
|
Pixel Pitch |
10mm |
|
Module Size |
160*160mm |
|
Module Resolution(pixels) |
16*16 |
|
Cabinet Size |
960mm×960mm |
|
Panel Resolution(pixels) |
96×96 |
|
Pixel Configuration(RGB) |
SMD 3 in 1 |
|
Pixel Density(pixels/㎡) |
10000 |
|
Brightness(cd/㎡) |
8000 |
|
Best Viewing Distance(m) |
6-100 |
|
Average Power Consumption(W/㎡) |
600 |
|
Waterproof Level |
IP65 |
|
Vavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
3129 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Tempreture |
–40~80°C |
|
Video Frame Rate(Hz) |
≥ 60HZ |
|
Display Refresh Rate(Hz) |
≥ 2000HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50,000 hours |
|
Lifespan |
≥100,000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/16 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resi
