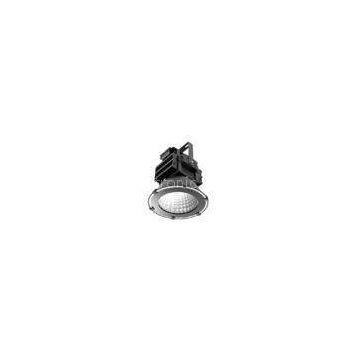

15600lm 120W High Bay LED Lights , 3020 LED 110LM/W and Meanwell Driver
- T/T L/C D/P D/A
- 7 days
You May Like
-
2400lm 24 Watt LED Ceiling Downlights Aluminum Alloy For Jewellery Lighting
-
28000lm 280W LED Tunnel Lighting , Bridgelux Meanwell Driver With Black Aluminum Housing
-
Energy Saving Bridgelux LED Light / 150W IP65 Tunnel Lighting
-
Super Bright 160W Tunnel LED Lighting , 3000k Bridgelux Chip
-
3000K Warm White Tunnel LED Lighting , 60 100W Waterproof Ra75 60Hz LED
-
Meanwell Driver IP65 Tunnel LED Lighting 70 Watt Waterproof Long Life With CE RoHs
Product Details
| Brand Name | Raymates | Place of Origin | China | |
| Model Number | RM-HB120W-3020 |
Product Description
Certification:CE, RoHS, FCC
15600lm 120W High Bay LED Lights , 3020 LED 110LM/W and Meanwell Driver
Quick Detail:
1. 120w
2. 14300-15600lm
3. 2700K-3200K, 4000K-4500K, 6000K-6500K
4. 3020 Epistar chip
5. 85v-265v ac, 50Hz – 60Hz
6. IP65
Description:
15600lm 120W High Bay LED Lights, Using high thermal conductivity grease to ensure smooth LED cooling channel junction temperature is less than 6 5℃, high power efficiency, life expectancy of more than 30,000hours;
*Highly reliable intelligent constant current driver power, the thermal design of the professional makes the components working temperature is not greater than 60℃, high power efficiency, life expectancy of more than 30,000hours;
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
Specifications
|
Tech Date |
||
|
Model |
RM-HB120W-3020 |
|
|
LED Qty |
260pcs |
|
|
LED Type |
3020 Epistar chip |
|
|
LED Power |
120W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC85~265V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>98 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
70~110LM/W |
|
|
Color Temperature |
WW |
2800-3200K |
|
PW |
4000-4500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>70 |
|
PW |
Ra>75 |
|
|
CW |
Ra>75 |
|
|
Lamp Efficiency |
>85% |
|
|
Lumens Output |
WW |
14300lm |
|
PW |
15000lm |
|
|
CW |
15600lm |
|
|
Beam Angle |
60° or 25° |
|
|
Working Temperature |
-40℃ ～ +55℃ |
|
|
Storage Temperature |
-25℃ ～ +65℃(25℃best) |
|
|
Life span |
>30000hrs |
|
|
Certification |
CE, RoHS, FCC |
|
|
IP Grade |
IP65 |
|
|
Housing Color |
Silver or Black |
|
|
Net Weight |
4.3kgs |
|
|
Dimension |
Φ420*375mm mm |
|
|
package |
58*36*29cm (4pcs/box) G.W.: 12.5kgs |
Competitive Advantage:
