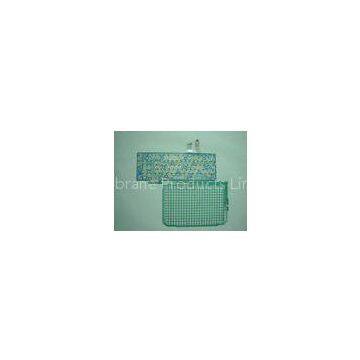

Film Switch Circuit Flexible Printed Circuit Board 1million times For Computer

Delivery Time:Within 3 weeks based on MOQ
Certification:Certification: ISO9001:2008 ,SGS,RoHs etc.

Dust Proof Copper Foil Flexible Printed Circuit Board For Mobile Phone



material : PET /PCadhesive: 3M467 & 3M468High life time :>1million timesPass:ISO9001:mbrane switch panel W/PCB BoardApplication:Medical Equipment;Telecommunications apparatus;Telephone systems;Household appliances;Security systems;Point of sale apparatus;Industrial controls


membrane panel
1) Custom made
2) Rasing available
3) Membrane switch faceplate
4) Withstand millions of cycles

membrane panel
Our membrane switches are widely used in :

Medical EquipmentTelecommunications apparatusTelephone systemsHousehold appliancesSecurity systemsPoint of sale apparatusIndustrial controlsAccess control systems.....



Applications:

Products are widely used in communication, industrial control, household
appliances, GPS, children\'s kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,
Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,
Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.
Remote control, control board for home appliances, medical equipment , auto, computer and cell phone, etc.
Both OEM and ODM orders are welcome.


Specifications:

1 material : PET /PC
2 adhesive: 3M467 & 3M468
3 High life time :>1million times
4 Pass:ISO9001:2008RoHS.
5 High quality


wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree


Technical Data:


Competitive Advantage:

1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.
4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5.Low cost,high lifespan,membrane switch\'s design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7.Customized specification is available and keys can make different shapes
