Certification:ISO9001

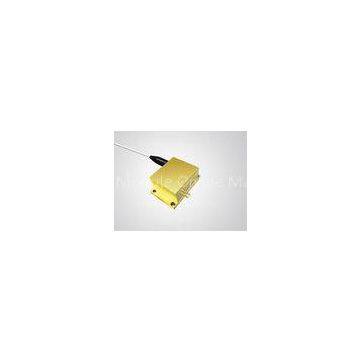

Ant Series - 30W 976nm Pump High Power Diode Laser Module K976DA3RN-30.00W 0.15N.A. / 0.22N.A.
Features:
915nm, 940nm, 976nm Wavelength
30W output power
105µm fiber core diameter
0.22N.A.
1030nm-1200nm feedback protection
Applications:
Laser pumping
Medical use
Material processing
Specifications(25℃) | Symbol | Unit | K976DA3RN-30.00W |
|
Optical data | CW-Output Power | P0 | W | 30 |
Center Wavelength | λc | nm | 976 |
|
Tolerance of λ | - | nm | ±3, ±10 |
|
Spectral Width (FWHM) | △ λ | nm | <5 |
|
Temperature Drift of λ | - | nm/℃ | ~0.3 |
|
Fiber data(1) | Fiber Core Diameter | Wc | µm | 105 |
Numerical Aperture | N.A. | - | 0.22 |
|
Fiber Connector | - | - | SMA-905 |
|
Electrical data | Operating Current | Iop | A | 12 |
Threshold Current | Ith | A | 0.5 |
|
Conversion Efficiency | η | % | 48 |
|
Slope Efficiency | ηD | W/A | 2.6 |
|
Operating Voltage | Vop | V | 5.4 |
|
Reverse Voltage | Vre | V | 7.5 |
|
Feedback | Wavelength Range | λ | nm | 1030-1200 |
Isolation | - | dB | >30 |
|
Others | Operating Temperature | Top | ℃ | 10~30 |
Storage Temperature | Tst | ℃ | -20~+80 |
|
Expected Lifetime | MTTF | h | >100, 000 |
|
Dimensions | - | mm | 42.0 x 25.0 x 17.0 |
|
Lead Soldering Temperature | Tis | ℃ | 260(10 sec.) |
Send Inquiry to This Supplier
