Right Angle Pin 300V 10A MCS Connector , 0.2 - 1.5mm2 / 24 - 14AWG SP435
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SUPU
Place of Origin:
China
Model Number:
SP438
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Straight Solder Pin 24 - 14 AWG MCS Connector , 6 Pole Light GreyNegotiableMOQ: 1 Piece -
Pitch 3.5mm 250V 10A 24 -16 AWG Female MCS Connector With Locking DeviceNegotiableMOQ: 1 Piece
-
2P - 24P 250V 10A 0.2 - 1.5 Mm2 Female MCS Connector , Spring Cage ClampNegotiableMOQ: 1 Piece
-
Female 250V 16A 300V 15A 24 - 14AWG MCS Connector With Locking Device SP450NegotiableMOQ: 1 Piece
-
24 - 14 AWG Feed-through Plug Terminal MCS Connector With Locking DeviceNegotiableMOQ: 1 Piece
Brand Name
SUPU
Place of Origin
China
Model Number
SP438
Delivery Time:7-10 working days after the confirmation of the order

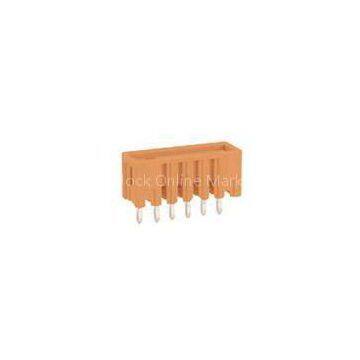

Right Angle Pin 300V 10A MCS Connector , 0.2 - 1.5mm2 / 24 - 14AWG
Order No.:438206(orange).
Right Angle Pin 300V 10A MCS Connector , 0.2 - 1.5mm2 / 24 - 14AWG
Quick details
2-24 right angle pin
Pitch 7mm/0.28in
250V 300V 10A
Wire Range 0.2-1.5mm2/24-14AWG.
Applied for any kind of wires.
Order No.:438206(orange).
Specifications:
|
Article: |
2-24 right angle pin |
|||
|
Pitch: |
7mm/0.28in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
10A |
10A |
10A |
|
|
Wire Range |
0.2-1.5mm2/24-14AWG |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
||||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
2.5KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
2 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA-66 |
|||
|
Color: |
orange |
|||
|
Packing: |
100PCS |
