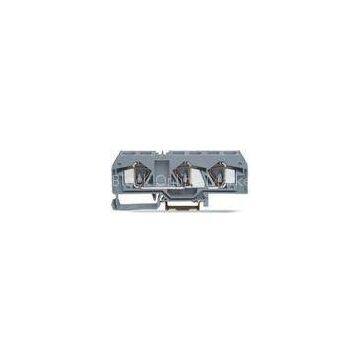

IEC 800V 18A UL 600V 10A 3 Conductor Through Spring Terminal Blocks Of Front - Entry
Quick details
3-Conductor Through Terminal Block
Wire Range 0.2-1.5mm2/24-16AWG.
800V 18A 600V 10A
Front-entry type
Order No.:215951(Gray)
Other Color: 215952(Orange)/215953(Blue).
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer\'s requests.
◆ Mounted on SP35 standard rail (steel or aluminum)
Specifications:
|
Article: |
3-Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-1.5mm2/24-16AWG |
|||
|
IEC |
UL |
CSA |
EN |
|
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
18A |
10A |
70A |
76A |
|
Size (mm/in): |
12×104.5×37.5mm/0.472×4.11×1.48 in |
|||
|
Strip length (mm/in): |
16-17 mm/0.65 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
||||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Orange/Blue |
|||
|
Packing: |
50PCS |
Attachment:
|
Name |
Order No. |
|
End-and Intermediate |
215151(Gray)/215152(Orange) |
|
Adjacent Jumper |
215301 |
|
Protective Warning Marker |
215701 |
