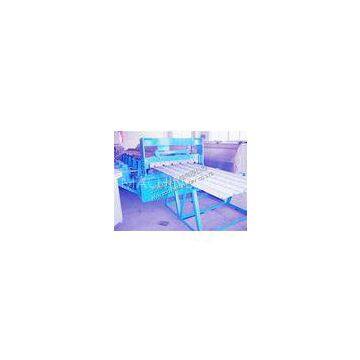

Help CenterHigh Speed Fully Automatic Wall Panel Roll Forming Machine Line With Runout Table
Related Products
-
IBR Sheet Roof Panel Roll Forming Machine , Galvanized Steel Double Layer Cold Roll FormerUS$ 25 - 25MOQ: 1 Set -
Aluminium Floor Deck / Cladding / Metal Roofing Roll Forming Machine G250 - G550MPAUS$ 15000$ - 40000$MOQ: 1 Set
-
Fully Automatic 15KW Corrugated Sheet Roll Forming Machine High Speed 35m/ MinUS$ 30000$ - 60000$MOQ: 1 Set
-
Color Steel Corrugated Roofing Wall Panel Roll Forming Machine With PLC ControlUS$ 10000$ - 40000$MOQ: 1 Set
-
Chains Transmission 11kw Tile Roof Panel Roll Forming Machine With 22 StationsUS$ 20000$ - 30000$MOQ: 1 Set
Certification:CE
High Speed Corrugated Roofing Roll Forming Machine With Fully Automatic Processing, 15KW Main Power
Description
|
Roll forming main machine |
1 unit |
|
8 TONS Un-coiler |
1 unit |
|
PLC Control panel |
2 unit |
|
Hydraulic station |
1 unit |
|
Post-cutting device |
1 unit |
|
Gear box driven |
1 unit |
|
Safety cover device |
1 unit |
|
Manual out table |
2 unit |
Main Specifications
|
Coil Material |
Thickness |
0.3-0.8mm |
|
Coil width |
Depend on customer’s requires |
|
|
Yield Strength |
250-550Mpa |
|
|
Material |
PPGI, Color Steel, GI. Aluminium |
|
|
Decoiler / Uncoiler |
Coil Width |
Max. 1000mm |
|
I.D |
510-610mm |
|
|
O.D |
Max. 1250mm |
|
|
Capability |
Max. 8tons |
|
|
Decoiler type |
Manual / Hydraulic/Automatic |
|
|
Feeding & guiding |
Pinch feeding |
1 Units ( 2 Rollers ) |
|
guiding |
2 Rollers |
|
|
Cutting device |
Cutting motion |
Hydraulic Cutting, post-Cutting ( cutting sheet after forming ) |
|
Cutting blades |
Cr12Mov with heat treatment HRC58-62 |
|
|
Length Measuring |
Automatic length measuring by encoder & PLC. |
|
|
Cutting Tolerance |
1.5mm(per 3m) |
|
|
Roll Forming Machine |
Forming Stations |
ABOUT 20steps |
|
Roller material |
45# steel, heat treatment |
|
|
Diameter of shaft |
80mm |
|
|
Shaft material |
High grade 45# steel |
|
|
Drive type |
gear box driven |
|
|
Forming speed |
0-35m/min |
|
|
Main power |
15kw |
|
|
Electrical control |
PLC |
PANASONIC Brand or Custom-made |
|
Inverter |
YASKAWA Brand or Custom-made |
|
|
Touch screen |
MCGS Brand or Custom-made |
|
|
Operation type |
Touch screen & Button |
|
|
Hydraulic Station |
Hydraulic station |
Famous Chinese brand |
|
Hydraulic power |
5.5KW |
|
|
Runout Table |
Table type |
Simple non-power type |
|
Function |
To support the finished panels |
|
|
WEIGHT |
APRRO 8 TONS |
The type pursues board (basis on customer\'s requires to design)
Our Advantage
Stationary style High Quality High Speed Reliable Durable Reasonable Price Good after Service 1 Year Warranty More Than 10Years Experience.
Warranty: 1 year warranty from date of shipment
Guarantee:
1:Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be m
