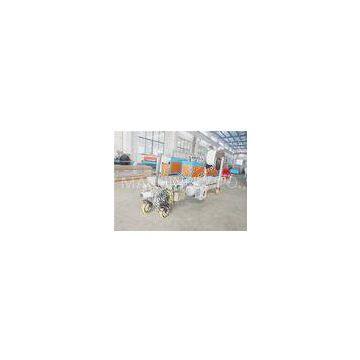

Help CenterPortable Color Steel Downspout Roll Forming Machine Width 1300mm 2 * 3 Inch
Related Products
-
Galvanized Sheet Downspout Portable Roll Forming Machine With Fly Saw CuttingUS$ 20000$ - 30000$MOQ: 1 Set -
Aluminum Sheet Portable Downspout Roll Forming Machine With Fly Saw CuttingUS$ 20000$ - 30000$MOQ: 1 Set
-
Rainwater Copper Downpipe / Downspout Roll Forming Machine 6-8m/minUS$ 22 - 22MOQ: 1 Set
-
Moveable Square Downspout Machine , 3KW Sheet Metal Roll Forming MachinesUS$ 20000$ - 30000$MOQ: 1 Set
-
Corrugated Roofing / Metal Deck Roll Forming Machine For 0.8 - 1.2mm ThicknessUS$ 35000$ - 45000$MOQ: 1 Set
Certification:CE
Portable 2 * 3 Inch Downspout Roll Forming Machine For Galvanized steel, Color Steel, Aluminum Sheet
Composition of machine
|
Model |
Portable ;Semi-automated: length control with limit switch |
|
Driver system |
Bottom drive rollers and 11 top drive rollers for smooth even, non-twisting drive Hard chrome steel forming rollers Urethane power drive system |
|
Shear |
Model cutting by Hydraulic /cutter off saw /model cutting by manual |
|
Speed |
Standard 6-8m/min. |
|
Control |
Push button and related controls |
|
Forming |
Stainless steel forming rollers |
|
Un-coiler |
Manual Built-in |
|
Electrical |
Configured to 110 volt or 220 volt |
Main Specifications
|
Coil Material |
Thickness |
0.3-0.8mm |
|
Coil width |
Depend on customer’s requires |
|
|
Yield Strength |
G250Mpa |
|
|
Material |
Galvanized sheet, steel sheet,Aluminum sheet |
|
|
Decoiler / Uncoiler |
Coil Width |
Max. 1300mm |
|
I.D |
410-520mm |
|
|
O.D |
Max. 1200mm |
|
|
Capability |
Max. 3Tons |
|
|
Decoiler type |
Manual / Hydraulic/Automatic |
|
|
Feeding & Leveling |
Pinch feeding |
1 Units ( 2 Rollers ) |
|
Cutting device |
Cutting motion |
Hydraulic Cutting/Manual Model Cutting/Fly Saw Cutting; post-Cutting ( cutting sheet after forming ) |
|
Cutting blades |
Cr12Mov with heat treatment HRC58-62 |
|
|
Length Measuring |
Automatic length measuring by encoder & PLC. |
|
|
Cutting Tolerance |
1.5mm(per 3m) |
|
|
Roll Forming Machine |
Forming Stations |
11 Stations |
|
Rectifying |
1 unit |
|
|
Roller material |
GCr15 steel, heat treatment |
|
|
Diameter of shaft |
60mm |
|
|
Shaft material |
High grade 45# steel |
|
|
Drive type |
Chains |
|
|
Forming speed |
6m/min |
|
|
Main power |
3.0KW |
|
|
Servo motor |
1 Units |
|
|
Driven System |
Driven by Motor |
Transmission by chains |
|
Electrical control |
PLC |
/ |
|
Inverter |
YASKAWA Brand or Custom-made |
|
|
Touch screen |
/ |
|
|
Operation type |
Touch screen & Button |
|
|
Hydraulic Station |
Hydraulic station |
Famous Chinese brand |
|
Hydraulic power |
3.0kw |
|
|
Runout Table |
Table type |
Simple non-power type |
|
Function |
To support the finished panels |
|
|
TOTAL WEIGHT |
AP |
