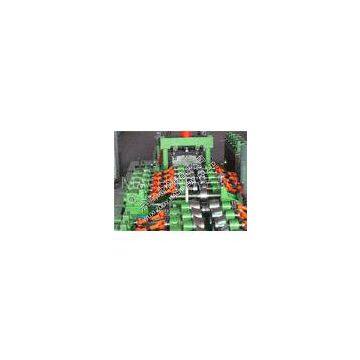

Help CenterCold / Hot Rolled Interchangeable C Z Purlin Roll Forming Machinery 1.2-4.5mm Thickness
Related Products
-
Automatic Control C Z Purlin Roll Forming Machine Interchangeable For Steel FrameUS$ 50000$ - 100000$MOQ: 1 Set -
18.5KW Metal Purlin Roll Forming Machine C & Z Shape Purlin Forming LineUS$ 35000$ - 60000$MOQ: 1 Set
-
High Speed Durable Steel Cold Roll Forming Equipment For C / Z Purlin 0-15m/minUS$ 25000$ - 35000$MOQ: 1 Set
-
Durable Steel Cee / Zee Purlin Roll Forming Machine With Full - Control SystemUS$ 50000$ - 65000$MOQ: 1 Piece
-
Single Side Changeable C Purlin Roll Forming Machine for Steel FrameUS$ 30000$ - 60000$MOQ: 1 Set
Certification:CE
1.2 - 4.5mm Thickness Corbon Steel CZ Purlin Roll Forming Machine With 30KW Gearbox Driven, Full - Automatic
Description
|
1 |
One machine can produce different C and Z Purlins through simple manual step-less adjustment, when to produce different profiles, no need to change the forming rollers. |
|
2 |
In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc dates. |
|
3 |
C and Z purlin roll former make up of de-coiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, run-out tables. |
|
4 |
This line main forming drive adopt reducer motor and frequency conversion control, speed control… |
|
5 |
It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 35m/min. |
Composition of machine
|
Roll forming main machine |
1 unit |
|
de-coiler |
1 unit |
|
PLC Control panel |
1 unit |
|
Hydraulic station |
1 unit |
|
PRE-cutting device |
1 unit |
|
PRE-punching device |
1 unit |
|
Safety cover device |
1 unit |
|
Manual out table |
2 unit |
Specifications
|
Coil Material |
Thickness |
1.5-4.5mm |
|
Coil width |
Depend on customer’s requires |
|
|
Yield Strength |
250-350Mpa |
|
|
Material |
GI. Carbon Steel |
|
|
Purlin Sizes |
Web width |
80-350mm |
|
Height |
40-80mm |
|
|
Lip |
12-20mm |
|
|
Conversion process |
C-C different sizes |
Approx. 2-3 minutes |
|
Z-Z different sizes |
Approx. 2-3 minutes |
|
|
C-Z or Z-C |
Approx. 5-15 minutes |
|
|
Decoiler / Uncoiler |
Coil Width |
Max. 600mm |
|
I.D |
510-610mm |
|
|
O.D |
Max. 1300mm |
|
|
Capability |
Max. 5 Tons |
|
|
Decoiler type |
Manual / Hydraulic/Automatic |
|
|
Feeding & Leveling |
Pinch feeding |
3 Units ( 6 Rollers ) |
|
Leveling |
7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers ) |
|
|
Punching device |
Punching motion |
Hydraulic Punching, Pre-punching |
|
Punching dies |
Cr12 Mov Steel, HRC58-62 |
|
|
Punching station |
1-6 Unites ( depend on hole patterns ) |
|
|
Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel. |
||
|
Cutting device |
Cutting motion |
Hydraulic Cutting, pre-Cutting ( cutting sheet before forming ) |
|
Cutting blades |
Cr12Mov with heat treatment HRC58-62 |
|
|
Length Measuring |
