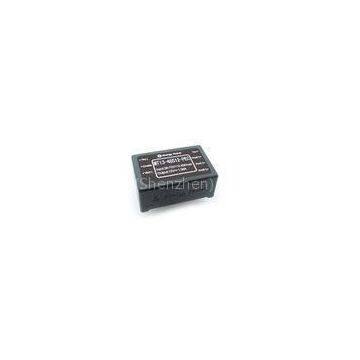

DC-DC Converters 13W Output 12V MT13-48S12-PEC
Key Features
Output power: 13W
Wide input range:36-72Vdc
High conversion efficiency: Up to 88%
Line regulation to ±0.5%
Load regulation to ±0.5%
Fixed operating frequency
Isolation voltage :1500V
Enable (ON/OFF) control
Output over-voltage protection
Output over-load protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim -5～+10 % Vout
Product Overview
These DC-DC converter modules use advanced powerprocessing, control and packaging technologies to providethe performance, flexibility, reliability and cost effectivenessof a mature power component. High frequency Active Clampswitching provides high power density with low noise andhigh efficiency.
Product’s Introduction
The MT series is an independently regulated single output converter that uses the industry nonstandard brick packagesize. Integral PCB transformer/inductor is used for all models in this series. This new design technique has greatlyimproved the magnetic coupling, reduced switching spike and provided performance consistency. It also streamlines theproduction process by completely eliminating the hand-wind magnetic assembly process from production lines.
Part Numbering — MT5-48S12-PEC
1. Electric Characteristics
Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,
unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data
testing at Ta=25oC except especial definition.
1.1 Absolute Maximum Ratings
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage | 75 | Vdc | Continuous, non-operating | ||
| 72 | Vdc | Continuous, operating | |||
| 75 | Vdc | Operatingtransient protection,<100mS | |||
| Isolation voltage | 2000 | Vdc | Input to output | ||
| Operating Temperature | -55 | 100 | ℃ | ||
| Storage Temperature | -65 | 125 | ℃ | ||
| Enable to Vin- Voltage | -0.5 | 10 | Vdc |
1.2 Input Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage Range | 36 | 48 | 72 | Vdc | Continuous |
| Under-Voltage Lockout | 34 | 35 | Vdc | Turn-on Threshold | |
| 32 | 33 | Vdc | Turn-off Threshold | ||
| Maximum Input Current | 0.45 | A | Full Load;18Vdc Input | ||
| Efficiency | 88 | % | Full load, derating input voltage.Figures 1-4 | ||
| Dissipation | 0.5 | W | No Load | ||
| Disabled Input Current | 8 | mA | Enable pin low | ||
|
Recommend External Input Capacitance |
100 | μF | Typical ESR 0.1-0.2Ω |
1.3 Output Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Output Voltage Set Point | 11.85 | 12.00 | 12.15 | Vdc | Nominal input; No load;25℃ |
| Output Voltage Range | 11.75 | 12.00 | 12.25 | Vdc | |
| Output Current Range | 0.01 | 1.08 | A | Subject to thermal derating. Figures 5-7 | |
| Line Regulation | ±0.02 | ±0.50 | % | Low line to high line; full load | |
| Load Regulation | ±0.02 | ±0.50 | % | No load to full load; nominal input | |
| Temperature Regulation | ±0.002 |
