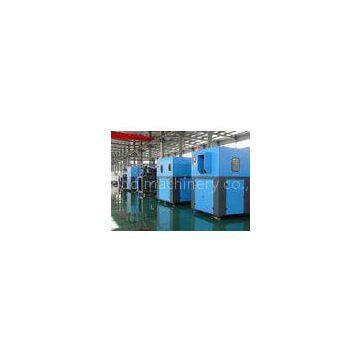

Automatic Water Bottle Bottle Blowing Machine 4000BPH With CE Approvals

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Renda		Place of Origin	China
Model Number	CM-A4

Product Description

Delivery Time:30 days
Certification:ISO,CE

Automatic water bottle Bottle Blowing Machine 4000BPH with CE Approvals

Quick Detail:

Condition: New Application: Bottle Plastic Processed: PET Blow Moulding Type: Stretch Blow Moulding Automatic: Yes Model Number: CM-A4

Description:

CM-A2/A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.

Applications:

CM-A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes.

Specifications:

Model	ITEM	CM-A2	CM-A4
Productivity	Depend on bottle design	1800-2000PCS/H	3200-4000PCS/H
Product type	Volume	0.1-2L	0.1-2L
Body diameter	≤100mm	≤100mm
Height	≤310mm	≤310mm
Neck diameter	≤38mm	≤38mm
Mould	Cavity	2	4
Mold thickness	240mm	240mm
Mold size	260240370mm	510240360mm
Main machine power	Electrical source power	380V/220V 50/60HZ 3Phase	380V/220V 50/60HZ 3Phase
Power	25kw	49kw
Really use power	6.5kw	13kw
Air system	HP air compressor	1.4 m3/min 3.0Mpa	2.0 m3/min 3.0Mpa
LP air compressor	1.0 m3/min 1.0Mpa	1.6 m3/min 1.0Mpa
Air Tank	0.6m3 3.0Mpa	0.6m3 3.0Mpa
Air dryer	1.0m3/min 3.0Mpa	2.0m3/min 3.0Mpa
Cooling water	Water Chiller	3HP	3HP
Machine	Size(LWH)	190012801930mm	190018601930mm
Weight	2000kg	3600kg
Preform unscrambler	Size(LWH)	20009502480mm	20009502480mm
Weight	250kg	250kg

Competitive Advantage:

*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic proces
