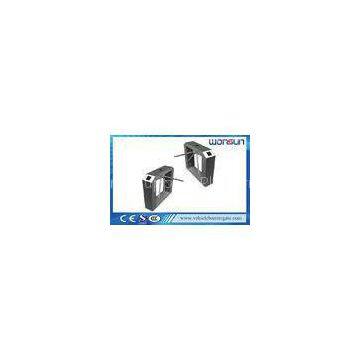

Safety Automatic Turnstile Barrier Gate

Delivery Time:3-10 working days after received your payment
Certification:CE, ISO, SGS

Safety Automatic Turnstile Barrier Gate for Entrance Control System With RS232 Socket

Quick Detail:

Name: Turnstile barrier gate

Driving Motor: Brushless DC Motor

Power Supply: 220V±10%, 110V±10%

Transit Speed: 30~40 persons/min

Rated Power: 36W

Rotating Direction: Double Direction

Specifications

Description	Parameter
Power Supply Input	AC110/220V±10%, 50HZ 200W
Working Voltage	24V DC
Power Consumption During Idle	10W
Power Consumption During Operation	150W
Passage Width	600mm
Response Time	0.3 second
Pass Speed	25person per minute
Housing/Arm	Stainless Steel
Internal Mechanism	Mild Steel
Arm Disc	Alloy Chromed
Protection Level:	IP45
Working Temperature:	-30℃~50℃
Electro-magnetic drive:	24V DC
Thickness of Ply :	1.5mm (Standard)?304#
Polishing:	Brushed surface (Standard) / Polishing surface
Weight:	About 42KG
Size:	420mm(L)×330mm(W)×980mm(H)
Mechanical life:	Two million
Arm Length:	500mm
Arm Diameter:	38mm (Standard)
Max Tolerance of Arm:	60KG
Diving Force of Arm:	3KG
Relative Humidity (RH):	5%-90%(without concretion)
Interface:	RS485
Control I/O:	±12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms

Functions and features:

Full-automatic type Stainless steel housing Bi-direction pass Arms auto drop when power off Arms auto rise up when power on and auto stop on obstacle Traffic light indicator Wingen 26/dry contact, is compatible with smart card for access control Photoelectric inspection If passenger does not pass in valid time, passage will be locked up And the valid passing time can be set up by operator Passenger counters (optional) Semi-automatic type: Auto-drop-arm function: middle arm can drop down automatically (default) (or free passing) when power is off Emergency-escape function: middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether power is on or not Structure has no motor Both directions can be set as controlled mode or free mode NO mode & NC mode can be switched over by users easily and freely Self-recovery function: machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software) With interface of relay switch (dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥100ms, driving current ≥10mA), compatible with all kinds of access controllers Each machine can be set by physical address (Optional) Equipped with free control software for man-machine interface and control command SDK Manual type: Arms can only rotate by single direction, but direction can be changed easily inside Structure has no electric devices Applications:

● Tripod Turnstile is an electro mechanical turnstiles. Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor

●Tripod Turnstile can effectively control high volume human traffic ( up to 25 person per minutes ) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.

●Tripod Turnstile is suitable for both indoor and outdoor(Shed). They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, hotel, super market, bank and etc.

Turnstile accessories:

● Turnstile Mechanism (semi-auto)
● Turnstile housing (304# Stainless steel at 1.5MM)
● Turnstile Control Board
● Turnstile Supply
● Turnstile Traffic Indicator(double direction)
● Turnstile Passage Status Lights

Communication with customers

1 - Does the turnstile come with a RS485 PC software?

The turnstile itself doesn’t come with a RS485 PC software,you need purchase the RS485 door access control  and card reader.But we suggest you purchase TCP/IP door access contro
