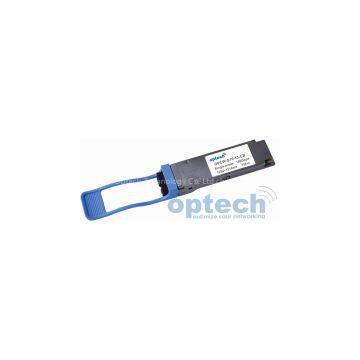

100Gbps QSFP28 Transceiver QSFP28 SR4/LR4
- 0 Case / Cases per Month
- T/T L/C D/P D/A
- 7 days
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | Optech | Place of Origin: | China |
Product Description
Optech 100Gbps QSFP28 transceivers are high-density,high-speed product solution designed for applications in the telecommunications,data center and networking markets. It supports 4 channels at 25Gpbs perchannels. Our QSFP28 transceivers have high reliability and performance, whichcan increase density and optimize your networking’s capability.
100G SR4 Features
* 4 independent full-duplex channels
* Up to 28Gb/s data rate per channel
* QSFP28 MSA compliant
* Up to 100m OM4 MMF transmission
* Operating case temperature: 0 to 70*C
* Single 3.3V power supply
* Maximum power consumption 3.5W
* MTP/MPO optical connector
* RoHS-6 compliant
100G SR4 Applications
* Rack to Rack
* Data Center
* Infiniband QDR, DDR and SDR
* 100G Ethernet
100G LR4 Features
* Hot pluggable QSFP28 MSA form factor
* Compliant to IEEE 802.3ba 100GBASE-LR4
* Up to 10km reach for G.652 SMF
* Single +3.3V power supply
* Operating case temperature: 0~70*C
* Transmitter: cooled 4x25Gb/s LAN WDM EML
* SA (1295.56, 1300.05, 1304.58,1309.14nm)
* Receiver: 4x25Gb/s PIN ROSA
* 4x28G Electrical Serial Interface(CEI-28G-VSR)
* Maximum power consumption 4.0W
* Duplex LC receptacle
* RoHS-6 compliant
100G LR4 Applications
* 100GBASE-LR4 Ethernet Links
* Infiniband QDR and DDR interconnects
* Client-side 100G Telecom connections
