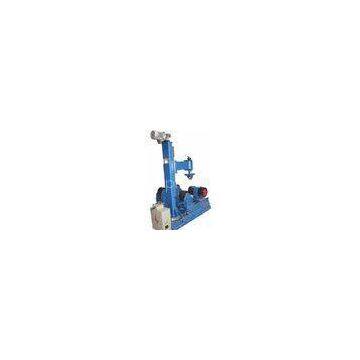

Conventional 5T Pipe Turning Rolls Welding Rotator With Manual Driving
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
10T Adjustable Conventional Welding Rotator With Rubber Rollers For Pipe Turning
-
Movable Motorized Pipe Welding Rotator PR 5T To Weld With High Efficient
-
Industrial Power Tank Welding Rotator , Self-aligned Welding Rotator
-
Vertical Adjustable Welding Tank Rotator For Tank , Custom Built Fit-Up Rolls
-
Power Vessel Fit-up Tank Rotator Welding Turning Roll For Construction Of Tank
-
100T Automatic Type Head And Tail Stock Lifting Weld Positioner Euipment
Product Details
| Brand Name | Yijie | Place of Origin | China | |
| Model Number | pipe |
Product Description
Certification:CE
Conventional 5T Pipe Turning Rolls Welding Rotator With Manual Driving
Conventional 5T Pipe Welding Rotator with Competive Price
Pipe rotator is specially designed and manufactured for purpose of meeting the requirements of enhancing productivity, increasing the extent of automatic, reducing welder’s working intensity and adapting to piping workshop prefabrication. The welding head will be relatively fixed, while the piping spool piece revolving at a specific rate, and the high efficient and low cost shielded welding or SAW process is adopted, so it has the features of easy-operation, reliable-performance and wide-application field.
Welding rotator is used to weld,polish and assemble the cylinder-shells,and to line the shells with rubber.It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter,and the linear velocity is displayed by the digital.The distance between the wheels ,could adjust by bolt or manual lead screw.To realize the diameter could suit for the workpiece.
We also can design the customize various types of the welding rotator in accordance with the customers requirement.
Specification:
|
Model
|
Pipe dia.(mm)
|
Max load(tons)
|
Motor power(kw)
|
Wheel speed(m/min)
|
Column elevating
|
Overall Dim(L*W*H)
|
|
PR0.5
|
50-350
|
0.5
|
0.37
|
0.1-1
|
Manual
|
1260*500*410
|
|
PR1
|
50-426
|
1
|
0.55
|
1260*500*410
|
||
|
PR5
|
50-630
|
5
|
1.3
|
Motorized
|
1900*1500*700
|
|
|
PR10
|
100-1000
|
10
|
1.6
|
2240*1510*800
|
Product Application:
Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.
Product Advantage:
Pipe type, convenient
high quality
Reasonable price
good service
Competitive Advantage:
Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
All the parts using well-known brands in China or other countries . Quality is more reliable .
Using double row bearings.
The base of rotator welded by plates, with high strength, no deformation after long time using.
