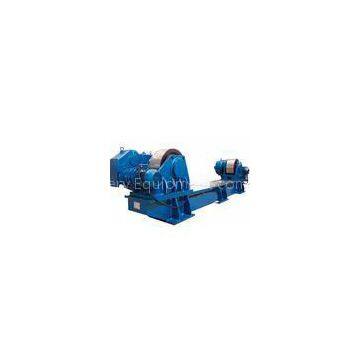

Industrial Conventional 100 Ton Tank Welding Turning Roll Of Hydraulic Lifting

Industrial Conventional 100 Ton Tank Welding Turning Roll Of Hydraulic Lifting

it Up Rolls, FUR SERIES: Designed for align and assembling shell to shell or section to section, round and conical. Ideal for construction of wind towers, steel vessels and tank

Standard package includes: a) One power rotator Model FUR WR with control box and 12.00 meters length remote control for adjusting of rotating speed, stop, forward, and reverse. Digital speed indicator set for mm/min is included, b) Three idler rotator Model FUR IR, c) Operation manual, d) One year guaranty.

Optional: a) Foot control pedal for control forward, stop and reverse rotation; b) Extra idler rotators Model FUR IR-IB may be required depending of work piece length; c) Rail tracks



Notes:

a) Custom built fit up rolls available. Required information: i) Tank weight, ii) Vessel diameter range (min- max)
b) Vertical adjustment of work piece: Both wheels of the same rotator has hydraulic lifting device which allows the wheels to move synchronized (right/left or left/right). While the wheel moves horizontally the work piece is lifted/lowered vertically
c) Horizontal adjustment of work piece: Two rotators have a hydraulic device which allows each wheel to move independently (right/left or left/right) for  horizontal adjustment
d) Fit up detailed sequence: Available under customer request
e) Inside and outside circumferential seam welding: By means of a Welding Manipulator WM Series with SAW head

Product Application:

Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber. Welding Rotator major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.

Product Advantage:

Fit-up type, convenient

high quality

Reasonable price

good service



Competitive Advantage:

1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.

2. 20 % overweight design , could making the rotator focus more.

3. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.

4. All the parts using well-known brands in China or other countries . Quality is more reliable .
