Certification:CE

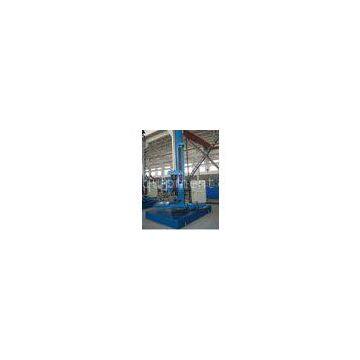

WM5050 Heavy-duty Vessel Welding Manipulator Machine Of High Precision
|
Type
|
Horizontal Retracting mm
|
Vertical Lifting mm
|
Column Rotation
|
Trolley Moving
|
Retracting Speed M/min
|
|
WM2020
|
2000
|
2000
|
By hand
|
By hand
|
0.12-1.2
|
|
WM3030
|
3000
|
3000
|
Motor
|
Motor
|
|
|
WM4040
|
4000
|
4000
|
Motor
|
Motor
|
|
|
WM5050
|
5000
|
5000
|
Motor
|
Motor
|
|
|
WM6060
|
6000
|
6000
|
Motor
|
Motor
|
|
|
WM7070
|
7000
|
7000
|
Motor
|
Motor
|
|
|
WM8080
|
8000
|
8000
|
Motor
|
Motor
|
|
|
Remote control box line length:12m
Cross fine-tuning:Manual or electric
|
Mechanical Structure Illustration
a)Column and Boom
Rectangular size is different according to the WM type.
b)Guider Units
This type adopts the way of combining the pinch roller and the guide pulley to clamp the guide rail,which makes the boom lift and retract smoothly.
c) Boom Retracting
The retracting type is:Motor--Worm gear reducer—gear shaft---the boom moving.The speed adjust by AC VFD,so the speed may change.
d)Column Revolving
Re-voling adopt motor worm gear and gears type. Rotary support may ensure the column revolving safety .
e)Cross Slide(motor)
The welding head was fixed on the cross slide. Slide adopt motor control.Usually the stroke is 100 mm
f)Electric Power Structure illustration
