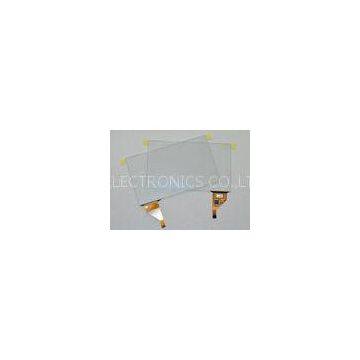

7 Glass + Glass Two Point Touch Screen With SSD2533 FN070AV02
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Projected Monitor 7 Inch Touch Panel Multi Touch Capacitive Screen FN070AY02-01
-
Anti - Glare Medical 5 Point 7 Capacitive Touch Panel Transparent Touch Screen
-
Capacitive 5 Point 7 Inch Touch Panel Interactive Touch Screen Display
-
WVGA 2 Point 7 Inch Capacitive Touchscreen Display 360cd/m2 FN070MV01
-
Industrial / Medical WVGA 7 Inch Touch Panel , TFT LCD Display Touchscreen
-
Two Point USB SSD2533 7 Inch Touch Panel LCD Module with Resolution 800*480
Product Details
| Brand Name | Fannal | Place of Origin | China | |
| Model Number | FN070AV02 |
Product Description
Certification:CE,RoHS
SSD2533 With USB Interface 7 Inch Touch Panel G+G And Industrial Capacitive Touch Panel
Description:
| P/N | FN070AV02 |
| Size | 7 inch |
| Structure | G+G |
| Number of Touch | 2 points |
| Driver IC | SSD2533 |
| Connector | IIC |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
Application:
Smart Home
Industrial
Aerospace
Financial and Retail
Medical
Transportation
Amusement
Office Equipment
Wearable device
Standard products:
| Panle Size | Part No |
TP AA (mm) |
Outline (mm) |
Th (mm) |
Number of touch | CTP IC | |
| 2.8 | FN028AV01 | 43.2*57.6 | 50.0*69.2 | 1.5 | 2touch | SSD2532 | |
| 3.5 | FN035AY01 | 74.94*50.36 | 94.94*66.86 | 1.3 | 2touch | MSTAR 2133A | |
| 4.0 | FN040AH01 | 52.44*95.1 | 57.84*97.8 | 1.1 | 5touch | FT5206GE1 | |
| 4.3 | FN043AY02 | 97.04*55.86 | 118*61.46 | 1.28 | 3touch | MSG2138A | |
| 5.0 | FN050AY01 | 108*64.8 | 127.0*85.8 | 1.83 | 5touch | FT5316 | |
| 7.0 | FN070AY02 | 156.48*88.32 | 163.5*99.6 | 1.43 | 5touch | FT5316 | |
| 8.0 | FN080AV01 | 162.01*121.51 | 175.3*136.55 | 2.2 | 5touch | SSD2533QN4A | |
| 9.7 | FN097AS01 | 197.61*148.46 | 230.33*179.33 | 1.65 | 5touch | FT5506 | |
| 10.1 | FN101AE01 | 217.96*136.6 | 262.7*178.7 | 1.43 | 10touch | EXC3062 | |
| 10.2 | FN102AE01 | 222.8*132.52 | 235*149.52 | 1.43 | 5touch | EXC3062 | |
| 12.1 | FN121AF01 | 250.6*189.1 | 270.2*212.5 | 2.4 | 4touch | EXC7200 |
