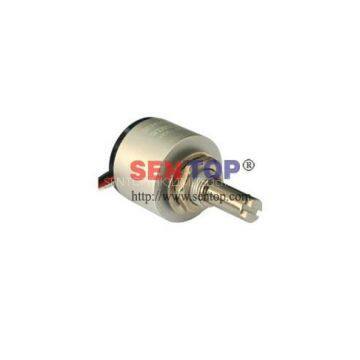

Potentiometer WDH22L
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Sentop | Place of Origin | China | |
| Model Number | WDH22L |
Product Description
■ General Specifications
Mechanical Travel: 360º (Endless)
Operating Temperature Range:-30°C～+80°C
Deposited Temperature Range:-30°C～+80°C
Protection Degree: IP54
Starting Torque :< 5mN·m
LifeExpectancy :> 10 Million Circles
Mass: About 25g
Housing: Aluminium, anodization in surface
Shaft: Stainless Steel
Bearing: Copper watt and1 precision ballbearings
■ Electrical Specifications
Effective Electrical Angle:360º
Independent Linearity Tolerance: Standard:0.3%: Precision: 0.2%: Super precision: 0.15%
Resolution: 4096 (12 bits)
Update Rate: 0.6ms / 0.2ms (high speed)
Supply Voltage:5V±10%, 15V～30V, 12V～24V, 15V～30V
Signal Output:0～5V(ratio), 0～10V, 0～5V, 4～20mA
Supply Current (MAX) :< 16mA :< 25mA,<25mA, <35mA
EndVoltage:<1%·VCC, <50mV, <50mV, <0.05mA
Output Load Resistance:>10KΩ, >10KΩ, >10KΩ, <600Ω
EMS:10V/m(80MHz～1GHz，1KHz80%Up or down).EN61000-4-3:2006+A1:2010
ESD:Tangency Discharge±8KV，Air Discharge±15KV.EN61000-4-2:2009
