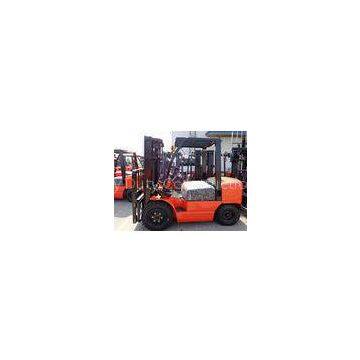

JAC Warehouse 3.5Ton Diesel Forklift Truck CPCD35J , Load Capacity 3500KG
Quick Detail:
1, Diesel forklift truck, Diesel power forklift
2, Material Handling, loading & unloading cargo, moving cargo in pallets,
3. Sea Port, Airport, Warehouse, Construction, factory
4,3500kg rated capacity, 3000mm lifting height, 500mm load center
5, Powerfull Engine: ISUZU engine YANMAR engine
6, High air intake and Tornado filter
Description:
HS Code: 8427209000
Trademark: JAC
Export Market: Global
Certificate: CE / SGS / ISO9001 / ISO14001 / SGS
Production Capacity: 20000 unit/year.
Forklift Type: Diesel Forklift
Model Number:CPCD35J Load Capacity: 3500KG
Engine:ISUZU / YANMAR / VM / JAC Engine / Chinese Engine
Transmission: Hydraulic/Auto (with TCM Technology)
Standard Mast:Standard 2-Stage Tower Mast (3.0m)
Container Mast(Optional): Duplex / Triplex full free Mast (3.0-6.0m)
Tyre: Pneumatic Tyre (Standard) Solid Tyre (Optional)
Side shift (optional): Integral side shift / Cascade side shift
Applications:
Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building, storage yard, airport, sea port, super market.
Specifications:
| Model | Unit | CPCD30J | CPCD35J | |
| Load Capacity | Kg | 3000 | 3500 | |
| Load Center | mm | 500 | 500 | |
| Mast Lifting height | mm | 3000 | 3000 | |
| Mast Free Lift | mm | 130 | 130 | |
| Mast lifting Speed (With Load) | mm/s | 435 | 368 | |
| Mast tilt (Front/Rear ) | 6°/ 12° | 6°/ 12° | ||
| Driving Speed | km/h | 17 | 19 | |
| Turning Radius | mm | 2500 | 2575 | |
| Ground clearance | mm | 130 | 130 | |
| Form Size | Length to face of forks | mm | 2740 | 2805 |
| Overall width | mm | 1230 | 1230 | |
| Height of overhead guard (cabin) | mm | 2105 | 2105 | |
| Height of mast, extended | mm | 4260 | 4270 | |
| Wheelbase | mm | 1700 | 1700 | |
| Tread | Fron | mm | 1000 | 1000 |
| Rear | mm | 970 | 970 | |
| Overhang (front) | mm | 480 | 495 | |
| Fork | mm | 45x125x1070 | 50x125x1070 | |
| Service Weight | kg | 4280 | 4820 |
|
Competitive Advantage:
1. Stream-line design: Exclusive streamline design, fashionable and spirituality.
2. Powerful Engine: Equip with high performance and quality engine: ISUZU, VM, YANMAR.
3. High performance shell hydraulic oil: Protect key spare parts and prolong working life.
4. Safety belt seat: Safe, comfortable and equip with warning system without fasten seat belt.
5. High exhaust fans: Provide better working environment for operator.
6. Integrated overhead guard: Well protect the operator
7. Hydraulic shift and key-switch type flame-out device: Operation and flame-out more easier.
8. Frame and steering axle set up a buffer device, in order to reduce the impact of roads, improve the comfort of manipulation
9. High air intake and Tornado filter, effectively prevent dust inhalation, can effectively extend the life of the engine.
10. Small size vehicle, low the vehicle center of gravity; small turning radius, go
