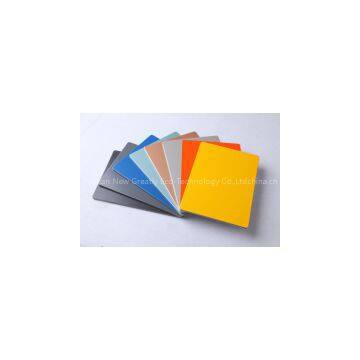

aluminium composite panel/acm/acp

aluminium composite panel/acm/acp

Variety of color/pattern choices (metalic,non-metalic,patterns that imitate  other natrual materials,such as marble,wood)

20years service life for PVDF coating

Quality strictly conformed withSGS KV-07-04992X standards and GB/T 17748-1999,  CE &SGS approved

High cost performance

1) Size of  Alumetal   aluminium composite panel

Thickness: 3 to 4mm
Width: 1,220, 1,250, 1,270, 1,500, 1,550 and 1,570mm
Length: 2,440m standand &customized length within 5,000mm
Weight: about 5.6kg/Sqm  based on 4mm thick
Standard size: 1,220 x 2,440mm

(nonstandard sizes are available according to your requirements)

2) Raw Material  of  Alumetal   aluminium composite panel

Front side: aluminum-alloy sheet coated with flour-carbon resin (PVDF) OR PE roasting painting,

Core: nontoxic polyethylene
Back side: aluminum-alloy sheet coated with polyester resin painting
Surface finish: treated with PVDF OR PE resin rolling roasting coating

Outside: protective carrier tape with brand logo

3) Characteristics of  Alumetal    aluminium composite panel

• Superior strength-to-weight ratio.
• Life expectancy of up to 20 years.
• Surface smoothness.
• Easy Installation.
• Attractive Finishes.
• Reduces heat and sound transmission.

4) Applications of  Alumetal    aluminium composite panel

• External Wall Cladding.
• Curtain Walls and Internal Finishes.
• Rooftop Edges and Wall Canopies.
• Stairways and Elevators.
• Advertising Display Sign Boards.
• Spandrels, Column Covers and Beam Wraps.
