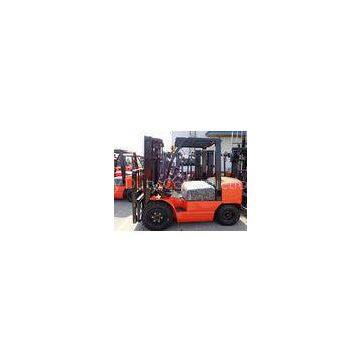

3T Hydraulic / Auto Diesel Forklift Truck , Counterbalance Forklift CPCD30H

Delivery Time:20-25 WORKING DAYS
Certification:CE / SGS / ISO9001 / ISO14001 / SGS

ISUZU ENGINE 3.0 Ton JAC CPCD30H Diesel Forklift Material Handling Truck

Quick Detail:

1. 3000kg rated capacity, 3000mm lifting height, 500mm load center

2. Sea Port, Airport, Warehouse, Construction, factory

3. Material Handling, loading & unloading cargo, moving cargo in pallets

4. Chinese engine, YANMAR engine

5. Diesel forklift truck, Diesel forklift, Diesel Fork Lifter

6. 3.0Ton Diesel Forklift Material Handling Truck Chinese ENGINE

7.Load Capacity: 3000KG

8,Engine:ISUZU / YANMAR / JAC Engine / VM Engine / Chinese Engine

9,Transmission: Hydraulic/Auto (with TCM Technology)

10,Standard Mast: Standard 2-Stage Tower Mast (3.0m)

11,Container Mast(Optional): Duplex / Triplex full free Mast (3.0m-6.0m)

Description:

HS Code: 8427209000

Trademark: JAC

Export Market: Global

Certificate: CE / SGS / ISO9001 / ISO14001 / SGS

Production Capacity: 20000 unit/year.

Forklift Type: Diesel Forklift Truck

Model Number:CPCD30J

Load Capacity: 2000KG

Engine:ISUZU / YANMAR / JAC Engine / VM Engine / Chinese Engine

Transmission: Hydraulic/Auto (with TCM Technology)

Standard Mast:Standard 2-Stage Tower Mast (3.0m)

Container Mast(Optional): Duplex / Triplex full free Mast (3.0m-6.0m)

Tyre: Pneumatic Tyre (Standard) Solid Tyre (Optional)

Side shift (optional): Integral side shift / Cascade side shift

Applications:

Material Handling, airport, sea port, super market,moving cargo in pallets in warehouse,2 Ton Diesel Counterbalance Forklift Material Handling Truck ISUZU ENGINE, loading & unloading cargo, factory building, storage yard,

Specifications:

		CPCD30
POWER UNIT		DIESEL
LOAD CAPACITY	kg	3000
LOAD CENTER	mm	500
SERVICE WEIGHT	kg	4300
STANDARD LIFT HEIGHT		3000
LENGTH TO FORK FACE	mm	2744
OVERALL WIDTH (STANDRD/DOUBLE FRONT TYRE)	mm	1160/1710
HEIGHT OF OVERHEAD GUARD	mm	2090
AISLE WIDTH WITH PALLET	mm	4030
1000*1200 ACROSS FORKS
TURNING RADIUS	mm	2645
TRAVEL SPEED, WITH/WITHOUT LOAD	km/h	19.5/17
ENGINE FOR OPTION		JAC	ISUZU	VM
		4DC1	C240PKJ-30	753IE4
ENGINE BRAND		JAC	ISUZU	VM
FUEL TYPE		DIESEL	DIESEL	DIESEL
ENGINE TYPE		4DC1	C240PKJ-30	753IE4
RATED POWER		45/2500	35.4/2500	50/2500
MAX.TORQUE		185/1600	137.7/1800	250/1800
NUMBER OF CYLINDERS/DISPLACEMENT(L)		4/3.059	4/2.369	3/2.2
BORE * STROKE (mm)		94.5*107	86*102	94*107
EMISSION REGULATION	EC STAGE 3A	EC STAGE 3	EC STAGE 3B	EC STAGE 3A

Competitive Advantage:

1. Stream-line design: Exclusive streamline design, fashionable and spirituality.

2. The new counterweight design, more beautiful appearance.

3. Flush door frame.

4. Large driving space and operating space, reduce operating fatigue

5. Right and concise dashboard instrument display, easy to read and easy to understand

6.Car fuel tank cap is adopted, practical, generous.

7. Wide field of vision to improv
