Home > Products > Internal Gear Pump > BNP4-G50F Internal Gear Pump

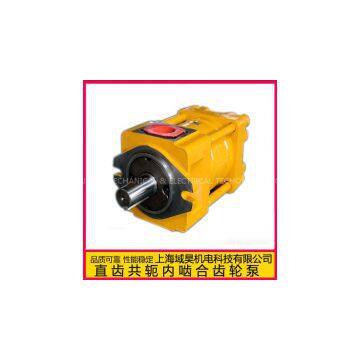

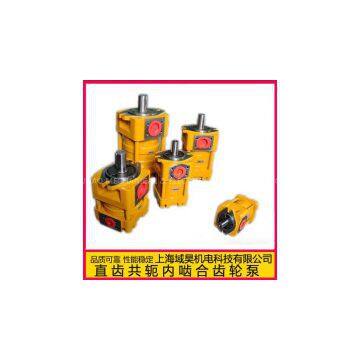

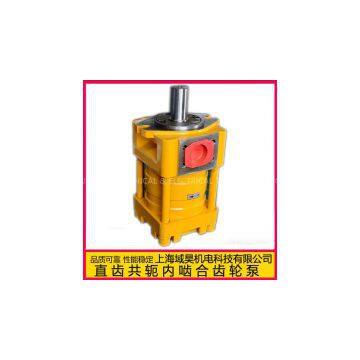

BNP4-G50F Internal Gear Pump
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Shanghai Yuhao | Place of Origin | China | |
| Model Number | BNP4-G50F |
Product Description
Nominal Pressure: 25MPa Max Pressure: 32MPa Displacement: 50CC/rev Rev.: 1500rmp Material: Cast Iron Colour: Grey and Yellow Weight:17.5Kgs The BNPserials internal gear pumps, which have simple construction and low noise. Numerous improvements have been made to the straight forward and robust design. Advances in the manufacturing process have made it possible without making higher demands on individual components to build pumps that are considerably lighter and more compact. A new tooth profile, conceived and optimised with the help of CAE, has yielded another significant reduction in noise levels. Large sealing areas result in higher efficiencies. The internal ring gear is supported by hydrodynamic lubrication film, which allows operation at low viscositie or low and high speeds. Then it can widely used in many fields, such as injection molding machine, shears, press brakes and other sheet metal processing equipments.
