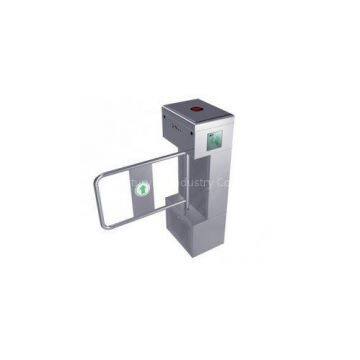

40 Person / Min RS485 Vertical Automatic Swing Gate Barrier With Memory Function for Park

Shenzhen Centuryfair Industry Co., Ltd,.
40 Person / Min RS485 Vertical Automatic Swing Gate Barrier With Memory Function for Park thumbnail-1
40 Person / Min RS485 Vertical Automatic Swing Gate Barrier With Memory Function for Park photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Centuryfair
Place of Origin:
China
Model Number:
SJSDZB06
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Centuryfair
Place of Origin China
Model Number SJSDZB06
Delivery Time:10-15 days after payment confirmed
Certification:CE

40 Person / Min RS485 Vertical Automatic Swing Gate Barrier with Memory Function for Park

 Description:

SJSDZB06 is widely used in airport,  musem,  bus station,  supermarket,  park, and other traffic resticted areas.  It is able to  integrate with barcode,  magnetic card,  IC,  ID card to excute access control,  time attendance,  tolling, etc. The machine rustproof,  durable and can resist external destroy, able to be placed both indoor or outdoor

Applications:

Bus Station

Exhibition

Airport

Subway

apartment,

factory,

museum

Park and so on

 Specifications:

Framework

304# stainless steel plate

Housing dimension

380* 280*1000mm

Lane

600-900mm

Weight

40 kgs

Entry/exit direction

One-way or two-way

Awing Angle

0-180

Working Voltage

AC220V ±10%   50/60 HZ

Motor

DC 24V brushed motors

Input interface

dry contact signal or 12V level signal,  or 12V pulse signal with

whose pulse width ＞100ms,  driven electricity ＞=10mA

Communication interface

RS485,  distance ≤1200M

LED indicating lights

1

Card-reading windows

2

Speed

40 people per minute (normal open),  25-30 people per minute (normal closed)

Closing/opening time

1-2 seconds

Time for entering into passing status after power on

3 seconds

Time for automatic reset after breakdown

10 seconds

Temperature

-10℃—— 50℃

Relative humility

≤90%,  no-condensation

 Competitive Advantage:

1. Breakdown self-checking and alarm,  very convenient to maintenance and use.

2. Easy to program operation mode by built-in little keypad on master controller

3. Machanical Anti-Pinch structure enable  motor to stop working automatically in given time

4. Anti-rushing function: the gate lock automatically without openning signal

5. Automatic resetting function: during openning,  the system will cancel access if nobody pass in given time.

6. Easy to change NC/NO mode for different requirement

7. Easy to integrated with magnetic card, barcode card, ID card,  IC card,  etc

8. Able to remove control by computer

9. Automatic delay reset process 5 second after open

10. Open automatically when power off and close automatically when power on.

11. Sound & light alarm,  including illegal break-in alarm,  close automatically for reverse entry , etc (Optional)

12. Counting function (optional)

13. Infrared reset function (Optional).
