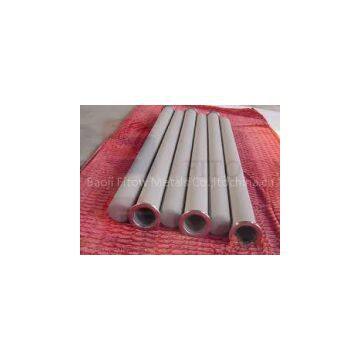

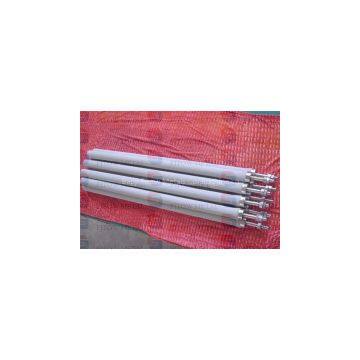

Bronze Titanium Ni SUS304 316L Metal Sintered Resists High Temperature Filter

Mechanical strength

Metal structure and sintered at high temperature

 High temperature and pressure resistant

Cartridges can work under extreme
high temperature and pressure conditions.

 Wide chemical compatibility

Cartridges can resist to strong acid, alkaline
and Ozone Oxidation.

 Long life

Cartridges can be backwashable and cleaned
by chemical solvent, hot water,steam

 Materials

Filter Media:Titanium powder Sintered
SUS316 powder Sintered
SUS316 mesh pleated

 Cartridge Dimensions (Nominal)

Outer Diameter: 60mm/80mm
Length: 10"-250mm
Length: 20"- 500mm 30"-750 mm
40"- 1000mm
*(Length is based on Cut ends)

 Nominal Micron

TI: 0.45um, 1um, 5um, 10um, 20um, 50um
STS: 1um, 5um, 10um, 20um, 50um
STP: 1um, 5um, 10um, 20um, 50um

 Typical Applications

Suitable for the extreme operating enviroments, steam filtration.
Pharmaceuticals:Prefiltraion and decarbonate filtration.
Food & Beverages:Viscous liquid with high temperature.
Fine Chemicals: Strong Acid and Alkaline filtration.
Water:Filtrate the O-zone containing water.

 Cartridge Cleaning Methods

* Pharmaceutical, Food & Beverage industries:
Hot water flush; Steam clean; Water Backwash
Brush clean; Compress air blow.
* Chemical Industry:
Chemical Solvent clean; Ultrasonic cleaning
