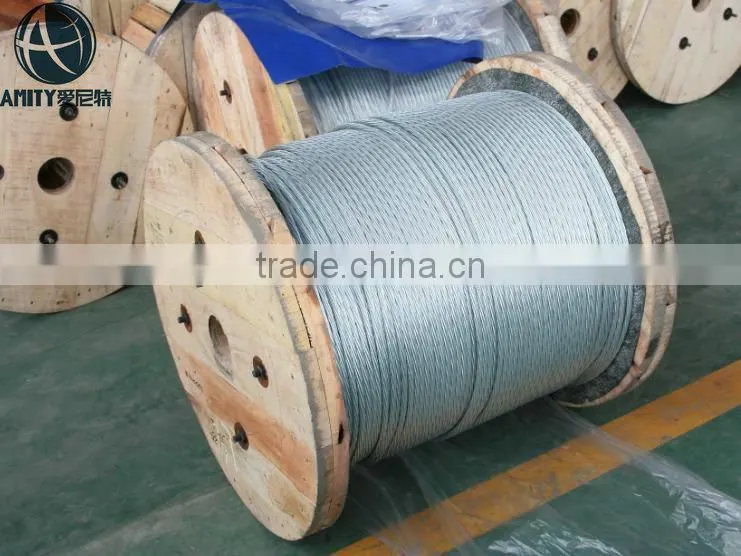

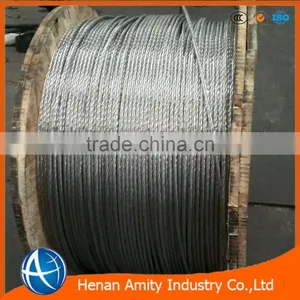

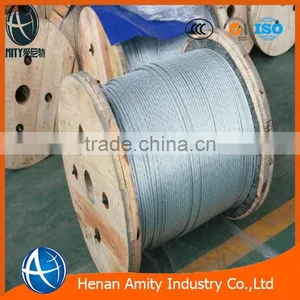

Galvanized steel cable
Application:
Galvanized steel wire strand is used for ACSR,messenger wire,Guy wire,Stay wire,Earth wire,Damper,
Helical Line Splices,Fence and so on.
Finish:Hot dipped
Content of Carbon:0.40%-0.85%
Galvanized steel wire:
Dia of wire:0.8mm-5.5mm
Galvanized steel wire strand:
Construction:1*3,1*7,1*19,1*37,
Dia. of wire in strand:1.2mm-4.25mm
1*19 Dia. of wire in strand:1.80mm-4.0mm
-
Standard:
ASTMA475,ASTMB498,BS183,BS4565,BS443,GB/T3428, YB/T5004,GB 1200-88,AS3607, AS1222, IEC60888,EN50189 and so on.
Tensile strength:900Mpa -1720Mpa
Zinc coating:120g/m2-549g/m2 Class A and Class B
Specifications for Galvanized steel wire
Diameter(mm) |
Tensile strength(Mpa) |
Weight of zinc(g/m2) |
1.24--2.25 |
1340--1620 |
185--215 |
2.25--3.00 |
1310--1590 |
230 |
3.00--3.50 |
1290--1550 |
245 |
3.50--4.25 |
1290--1520 |
260 |
4.25--4.75 |
1290--1520 |
275 |
4.75--5.50 |
1290--1520 |
290 |
|
Intensity level |
Wire diameter (mm) |
Min.tensile strength (Mpa) |
Min.stress with 1% extension (Mpa) |
Min.extension percentage when L=250(%) |
Min.number of 360°twists |
Diameter of testing mandril (multiple) |
General |
>1.24--2.25 |
1340 |
1170 |
3 |
16 |
1 |
>2.25--2.75 |
1310 |
1140 |
3 |
16 |
1 |
|
>2.75--3.00 |
1310 |
1140 |
3.5 |
16 |
1 |
|
>3.00--3.50 |
1290 |
1100 |
3.5 |
14 |
1 |
|
>3.50--4.25 |
1290 |
1100 |
4 |
12 |
1 |
|
>4.25--4.75 |
1290 |
1100 |
4 |
12 |
1 |
|
>4.75--5.50 |
1290 |
1100 |
4 |
12 |
1 |
|
High |
>1.24--2.25 |
1450 |
1310 |
2.5 |
16 |
3 |
>2.25--2.75 |
1410 |
1280 |
2.5 |
16 |
3 |
|
>2.75--3.00 |
1410 |
1280 |
3 |
16 |
4 |
|
>3.00--3.50 |
1410 |
1240 |
3 |
14 |
4 |
|
>3.50--4.25 |
1380 |
1170 |
3 |
12 |
4 |
|
>4.25--4.75 |
1380 |
1170 |
3 |
12 |
4 |
|
>4.75--5.50 |
1380 |
1170 |
3 |
12 |
4 |
|
Very high |
>1.24--2.25 |
1620 |
1450 |
2 |
14 |
4 |
>2.25--2.75 |
1590 |
1410 |
2 |
14 |
4 |
|
>2.75--3.00 |
1590 |
1410 |
2.5 |
12 |
5 |
|
>3.00--3.50 |
1550 |
1380 |
2.5 |
12 |
5 |
|
>3.50--4.25 |
1520 |
1340 |
2.5 |
10 |
5 |
|
>4.25--4.75 |
1520 |
1340 |
2.5 |
10 |
5 |
|
>4.75--5.50 |
1520 |
1270 |
2.5 |
10 |
5 |
Specifications for EN50189(zinc coated steel wires)
Zinc coating requirements | |||||||||||
Nominal wire Dia,mm |
Class A |
Class B |
Class C |
Class D |
Class E |
||||||
Over |
Up To and Incl. |
Min mass of Zn. g/mm2 |
Min.no of one minute dips |
Min mass of Zn. g/mm2 |
Min.no of one minute dips |
Min mass of Zn. g/mm2 |
Min.no of one minute dips |
Min mass of Zn .g/mm2 |
Min.no of one minute dips |
Min mass of Zn. g/mm2 |
Min.no of one minute dips |
1.24 |
1.5 |
185 |
2 |
370 |
3.5 |
150 |
1 |
365 |
3 |
185 |
2 |
1.5 |
1.75 |
200 |
2 |
400 |
3.5 |
160 |
1.5 |
460 |
3.5 |
200 |
2 |
1.75 |
2 |
215 |
2.5 |
430 |
4 |
175 |
2 |
550 |
4 |
215 |
2.5 |
2 |
2.25 |
215 |
2.5 |
430 |
4 |
190 |
2.5 |
550 |
4 |
250 |
3.5 |
2.25 |
2.75 |
230 |
3 |
460 |
4 |
190 |
2.5 |
640 |
5 |
250 |
3.5 |
2.75 |
3 |
230 |
3 |
460 |
4 |
205 |
3 |
640 |
5 |
250 |
3.5 |
3 |
3.5 |
245 |
3.5 |
490 |
4 |
260 |
3.5 |
730 |
6 |
250 |
3.5 |
3.5 |
4.25 |
260 |
3.5 |
520 |
4 |
275 |
4 |
730 |
6 |
260 |
3.5 |
GB 1200-88 Specifications for Zinc coated steel wire strand
No. of |
Steel |
Dia. |
section area |
Nominal tensile streng of Gal.steel wire (Mpa) |
Approximate |
||||||||
1175 |
1270 |
1370 |
1470 |
1570 |
|||||||||
Breaking strength of strand | |||||||||||||
|
mm |
mm |
mm2 |
kN≥ |
kg/100M |
||||||||
1×7 |
1.60 |
4.8 |
14.07 |
16.53 |
17.87 |
19.28 |
20.68 |
22.09 |
11.17 |
||||
1.80 |
5.4 |
17.81 |
20.93 |
22.62 |
24.40 |
26.18 |
27.96 |
14.14 |
|||||
2.00 |
6.0 |
21.99 |
25.84 |
27.93 |
30.13 |
32.32 |
34.52 |
17.46 |
|||||
2.20 |
6.6 |
26.60 |
31.26 |
33.78 |
36.44 |
39.10 |
41.76 |
22.77 |
|||||
2.30 |
6.9 |
29.08 |
34.17 |
36.93 |
39.84 |
42.75 |
45.66 |
23.09 |
|||||
2.60 |
7.8 |
37.17 |
43.60 |
47.20 |
50.92 |
54.63 |
58.30 |
29.51 |
|||||
2.90 |
8.7 |
46.24 |
54.33 |
58.72 |
63.36 |
67.97 |
72.60 |
36.71 |
|||||
3.00 |
9.0 |
49.48 |
58.14 |
62.84 |
67.79 |
72.74 |
77.68 |
42.38 |
|||||
3.20 |
9.6 |
56.30 |
66.15 |
71.50 |
77.13 |
82.76 |
88.39 |
44.70 |
|||||
3.50 |
10.5 |
67.35 |
79.14 |
85.85 |
92.27 |
99.00 |
105.74 |
53.48 |
|||||
3.80 |
11.4 |
79.39 |
93.28 |
100.82 |
108.76 |
116.70 |
124.64 |
63.04 |
|||||
1×19 |
1.60 |
8.0 |
38.2 |
44.88 |
48.51 |
52.38 |
56.15 |
59.97 |
30.40 |
||||
1.80 |
9.0 |
48.35 |
56.81 |
61.40 |
66.24 |
71.07 |
75.91 |
38.49 |
|||||
2.00 |
10.0 |
59.69 |
70.14 |
75.81 |
81.77 |
87.74 |
93.71 |
47.51 |
|||||
2.20 |
11.6 |
72.22 |
84.86 |
91.71 |
98.94 |
106.16 |
113.39 |
56.69 |
|||||
2.30 |
11.5 |
78.94 |
92.75 |
100.25 |
108.15 |
116.04 |
123.94 |
62.84 |
|||||
2.60 |
13.0 |
100.88 |
118.53 |
125.12 |
138.20 |
148.29 |
158.38 |
80.30 |
|||||
2.90 |
14.5 |
125.50 |
147.46 |
159.38 |
171.93 |
184.48 |
197.03 |
99.90 |
|||||
3.00 |
15.0 |
134.30 |
157.80 |
170.56 |
183.99 |
197.42 |
210.85 |
105.43 |
|||||
3.20 |
16.0 |
152.81 |
179.55 |
194.06 |
209.35 |
224.63 |
239.91 |
121.64 |
|||||
Specifications for Galvanized steel wire strand ASTM A475
(Concentrically stranded galvanized steel strand. Available in classes "A", "B" and "C" galvanizing, "A" being
the least heavy and "C" being the most heavy. Available in five grades of strength: common, Siemens-Martin, high-strength, utilities, and extra-high-strength. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.)
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received

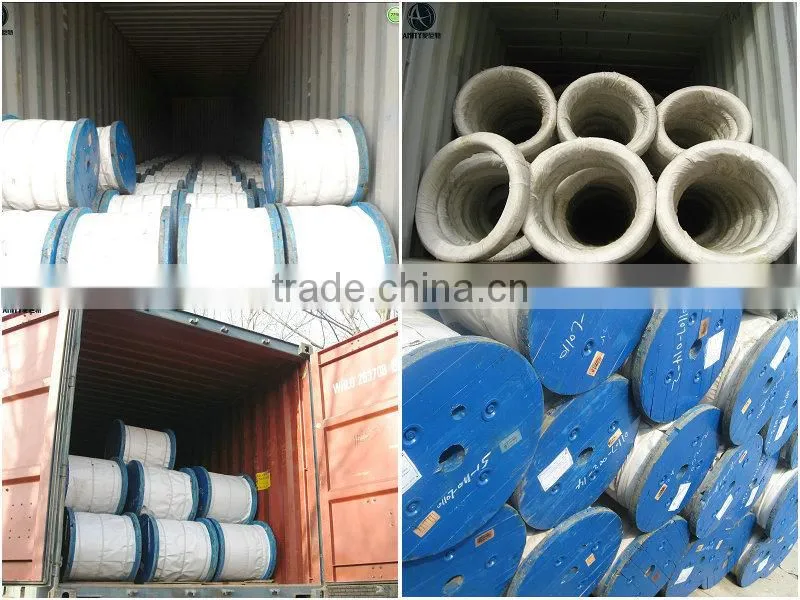

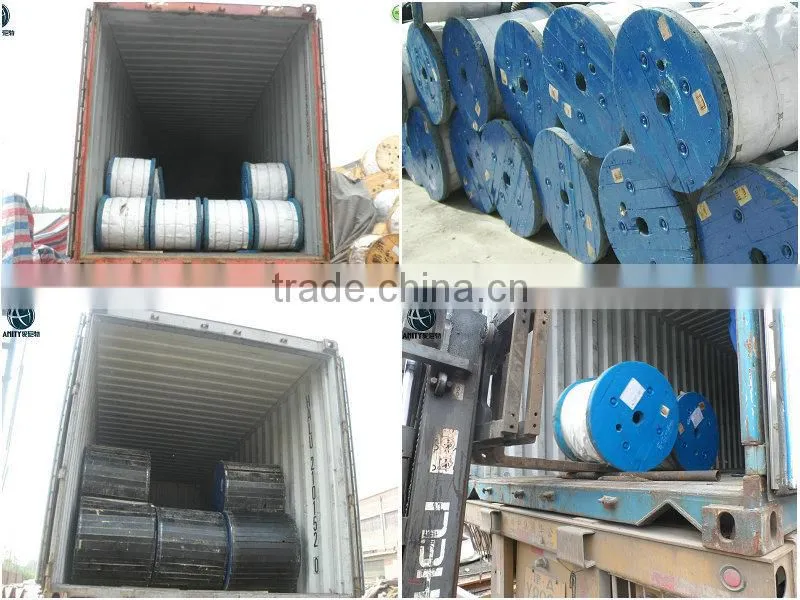

4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?
[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
