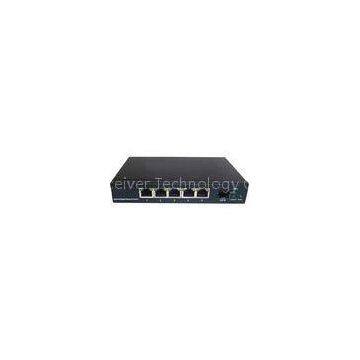

Auto-MDIX Gigabit SFP + Fiber Optic Switches Communication 10 / 100 / 1000M
10/100/1000M 5-Port Rj45 and Gigabit 1-SFP port fiber switch .Support the second floor of wire-speed switching hardware , and support Flow Control, storm control, etc.
•Product Key Features
Surppot plug and play RJ45 ports support that are Compatible with full / half duplex mode Automatically maintain a list of MAC address, MAC address learning function to support two-way All ports support auto-negotiation function (duplex mode / speed) Support Auto-MDIX feature, automatic identification through cable and crossover cable surppot strom control surpport flow control for full duplex and back pressure for half duplex•Product technical specifications
|
Product Type |
FR-G1S5T |
|
Support agreement |
IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.3z, IEEE802.1q |
|
Ports |
5 RJ45 ports, 1 SFP port |
|
Maximum Fram elength |
9720byte |
|
MAC address table |
4K |
|
Cache |
960Kb |
|
Network Media |
1000Base-LX:using long wavelength laser over single mode fiber, the maximum transmission of the distance is 10Km , the wavelength is 1310nm. |
|
1000Base-SX:use the 50μm multimode fiber, the maximum transmission distance of 550 meters, the wavelength is 850nm. |
|
|
10Base-T:3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m) |
|
|
100Base-TX:5 Category UTP; (maximum transmission distance of 100m) |
|
|
1000Base-T:CAT-5E UTP or Category 6 UTP (maximum transmission distance of 100m) |
|
|
Filtering and forwarding rate |
10Mbps:14880pps |
|
100Mbps:148800pps |
|
|
1000Mbps:1488000pps |
|
|
LED |
Green on/blinking:work in 1000M/100/10M mode；yellow flash:work inlink/ACT mode. |
|
Dimensions |
— |
|
Use of the environment |
Operating Temperature: 0℃～50℃；Humidity 10% ~ 90% non-condensing |
|
Storage temperature: -20℃～70℃；Storage Humidity 10% ~ 90% non-condensing |
|
|
Power |
Input:100-240V/AC, 50HZ；Output:6V/2.5A |
|
Power consumption |
Power consumption: 15W |
