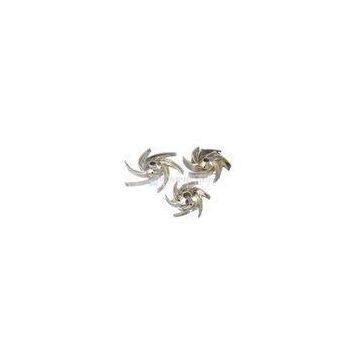

CD4MCu Stainless Steel Precision Casting For Hand Polished Cast Impeller

CD4MCu Stainless Steel Precision Casting For Hand Polished Cast Impeller

Quick Detail:

Description:

Silica sol lost wax casting of Stainless steel with vibratory polishing and hand polishing.

We cast a wide array of materials: stainless steel, carbon steel, duplex alloys, nickel-based materials, and more with different sizes and configurations:

Investment Casting (or) Lost Wax Method

The model of the part is made of wax from an aluminum die, then the wax patterns are welded onto the runner system which is also made of wax - it forms a pattern tree or called pattern assembly. Next, the pattern tree will be dipped into ceramic slurry of sand or stucco, with drying process between each coating until the shell is thick enough to hold the weight of melten metal which will be poured later.

Then the Pattern tree with wax in it is going to a high pressure oven which melt the wax out. It forms a hollow in the shell. The shell is preheated before pouring to help fluidity of melton metal. A sand bed is always aside to hold the hot poured shell.

In the following process, the shell is broken and removed, so the castings can be seen now. The castings are then cut off from the metal tree and shot blast/polished/machined to get better tolerance and surface.

Applications:

Pumps

Valves

Pipe Fittings

Automotive

Marine and Oil

Machinery

Power & Energy

Other Mechanical Castings

Specifications:

Competitive Advantage:

By injecting wax into a permanent-molding die to form a pattern, investment casting get casting parts of good surface quality and became the solution for many complex parts that are required in large quantities.
