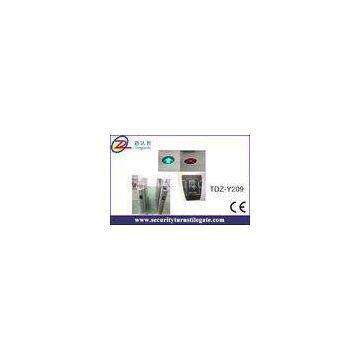

Bidirectional Flap Barrier Gate RFID Turnstile for museum , airport

Description

Flap barrier

Power consumption

50 W

Housing Size

1200*300*1000 mm

Housing material

1.5 mm, 304# stainless steel,

Drive motor

DC brushless motor

Channel width

500--600 mm

Pass speed

30 persons/min.

Communication Interface

RS485,TCP/IP

Input signal optional

DC12V level signal or DC12V pulse signal

flap open against power off

Optional

Working temperature

-30℃ to +70 ℃

Working environments

indoor,outdoor

Relative humidity

≤95% coagulation free

MCBF

3,000,000 cycles

1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.

2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).

3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).

4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

5.Smart card reader compatible with a variety of card such as IC and ID card.

6.Can be expanded to automatic identification system,realizing function to access control,

pedestrian flow control,attendance check or fare collection.

7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.

8.Control panel with count and LED digital function.

9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.
