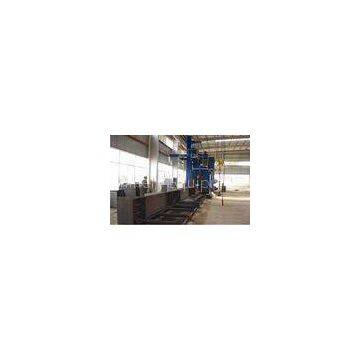

Automatic Heavy-duty SPQ Series Blast Cleaning Roller Machine of H Beam Welding Line

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yijie		Place of Origin	China
Model Number	SPQ

Product Description

Delivery Time:15--25days
Certification:CE

Automatic Heavy-duty SPQ Series Blast Cleaning Roller Machine of H Beam Welding Line

1. Structure

SPQ blast cleaning machine is the use of high-speed rotating impeller of projectiles thrown drum continuously overturned on the workpiece, thus achieving the purpose of liquidation workpiece. It applies to all sectors of the money Sand Castings and Forgings, removing rust and oxidation to the skin and surface hardening. Since this machine with a unique dust collection devices, the installation locations workshop ventilation pipe from the restrictions, and the health conditions are good, the machine\'s automatic shutdown device is simple to operate. The main functions of aircraft parts cleaning up room, an indoor roller transportation and access of conveying roller, Shot blast for projectile circulatory system (including Hoist, separators, and vertical and horizontal screw conveyor and the projectile recovery for the pill and pipelines) Purge bodies, dust, electrical components and control components.

2. Principle

This machine is the roller machine for Continuous Feeding of high function blast cleaning equipment, in the liquidation process, when the Speed Roller Conveyor pieces of steel or steel cleaning machine which is electrical controlled is send into intimate projectile District, its whole body from the surface will receive combat and friction by different coordinates of the powerful intensive projectile to make its skin oxidation, rust and dirt layer rapidly falling out of steel , thus the surface of the steel will be roughness finished and handling workpiece on both the import and export clearance outdoor roller. The above projectile which is felled into the steel purge by the dust and rust devices, the tourist from the pill dust mixture from the spiral transported to the recovery room on the funnel, and vertical and horizontal screw conveyor to the pool in the lower part of Hoist, again rose to the top of the machine for the separation, the separation of pure projectile fall into separator hopper for Blasting recycling. Blasting cleaning dust from the exhaust pipe to send deducting system, purification treatment, the net emissions to the atmosphere, the dust particles were captured collected.

Product Application:

Automatic mode heavy duty H-beam build up line is widely used in various metal structure enterprises domestically.

Product Advantage:

high quality

Reasonable price

good service

Specification:

Equipment Model	SPQ0816
Through workpiece size	Section 800 x 1600mm
length workpiece	3500-4000mm
Blasting	Blasting volume number 8 × 8 × 8 200Kg/min kw power
nput and output Roll	1000 to allow truck / m speed transmission 0.4-4m/min
Dust air volume	15300m3 / h
Pill material recycling volume	96T / h
Size	26, 400 × 4105 × 6030mm
Pit to the depth	2090mm
Total power	137KW
