26V CCTV Power Supplies

Chinasky Electronics Company
26V CCTV Power Supplies thumbnail-1
26V CCTV Power Supplies photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Chinasky
Place of Origin:
China
Model Number:
26VAC3A8P
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Chinasky
Place of Origin China
Model Number 26VAC3A8P
Delivery Time:5-12 working days
Certification:CE / IEC certified

1.Output voltage: 26V

2.Output current: 3A

3.Power: 80W

4.Output type: 8 channels for 8 sets load

5.Certification: CE certified , IEC certified

6.Supply type: ODM

Descrition:

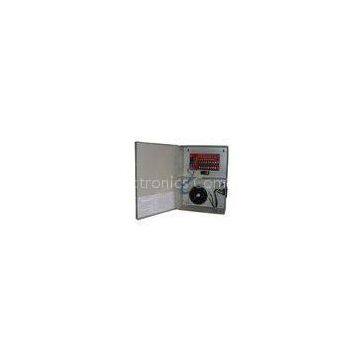

26VAC3A8P:1 in 8 Out 26VAC 3Amp Boxed CCTV Power Supply

The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.

Features:

Power up to 8 CCTV CCTV surveillance cameras 26 Volts AC 3 Amp total output Max output current up to 1.1 Amp/Channel 8 individually PTC auto-reset fuses protected outputs Integral surge protection Individual LED power indication Individual PTC reset-able fuses Internal On/off safety power switch with LED indicator Beige metal housing

Technical specifications:

Model

26VAC3A8P

Power

80W

Metal Case Dimension

28×20.8×8.7cm

Net Weight

3.13kgs

Input

Input Voltage

110/220VAC

Input Voltage Frequency

50Hz-60Hz

Output

Output Voltage

24VAC±5%

Output Current

3A, 8 channels for 8 sets load

Fuse

Type /Rating

PTC  1.1A/60V

Over Current Protection

When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

Short-circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

Circumstances

Working Temperature

0℃-+40℃

Storage Temperature

-20℃-+85℃

RH

5%-95%

Heat Release

Natural heat dissipation

Connection

Input

Three-pin socket

Output

8 channels output

Competitive Advantages:

This is one of the best 24VAC CCTV power supply boxes on the market for security cameras. We replace the cheap \"glass fuse\" with \"PTC\" Reset Fuses which will Auto Reset after you fix the short. You don\'t have to run around town try to find the replacement fuses. All you have to do is to fix the shorts. The red light shorts indicator helps you to know which camera is not working. Dependable and long lasting Warranty: 2 years
