Foldable Container for Exhibitions or Office – Modular, Mobile, Galvanized Steel Sturcture
Description:

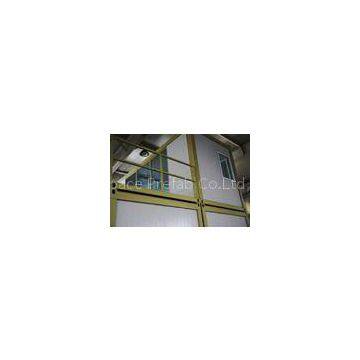

This building is combined from 3 standard units and 1 external flatform.
The size of the rooms are 4.8m*6m downstairs and 2.4m*6m upstairs. There is a bocony (2.4*6m) upstairs where you can set up a outdoor recreational area. The combined office block is raised up 0.5m above the ground to make sure better insulation and dampproof performance.
Cabin is consisted of ready-made floor frame, roof frame, wall panels, internal partitions and accessories. 2 workers can assemble on basic unit within 4 hours (about 14.4 square meters). For this building, it needs 6 man.days.
It’s convenient for folding. 4 units packed to one 20 feet container during delivery, so it is suitable for international transportation.
Specifications of Each Unit:
I. Dimension(mm)＆Weight(kg)
L=6055mm, W=2435mm, H=2790mm
II. Steel Frame: Galvanized Steel Frame with Marine Paint Finishes
Load bearing - floor load: max. load capacity 2.0 kN/m² (200 kg/m²)
Capacity - wind load: 25 m/s (90 km/h)
III. Wall : 50 - 100mm thick Sandwiched Panel
IV. Insulation : 50-100mm thick Rockwool or Neopor EPS
V. Door: 900 x 2100 mm Alum. Frame Metal Door or PVC Door
VI. Windows: 800 x 1000 mm Alum. Frame or PVC Window
Competitive Advantage:
Knock-down Panel wall saves transport and storage space
Top and bottom are pre-assembled in the factory in order to minimize the on-site work
With firm structure, the earthquakes and typhoons can be resisted
With the insulation material of rock wool and Noepor polystyrene, good fireproof performance is available.
Modular design, be linked on unlimited extension
Easy to be repaired and maintained for high standardization.
Life time 30 years.
