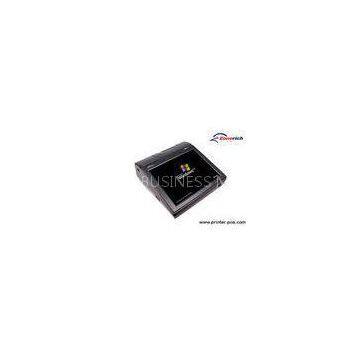

Win XP Android Linux All In One POS System With VFD Pole Display
10\" Touch Screen All in One Supermarket POS System with Customer Display
PRODUCT NAME: ALL-IN-ONE POS
MODEL#: ZQ-P1580
HIGHLIGHTS
All-in-one design Built-in 80mm Seiko mechanism thermal printer Various options of peripherals-MAR/Dallars key Built-in adjustable customer displayOPTIONAL
MSR/ Dallas key, customer displayFEATURES
Compatible with both PC based architectureFor different requirement levels Customized system will satisfy professional customers.
Dallas keyThe security concept is getting stronger in the market. Dallas key could meet the requirement.
Or it could be used for applications which will need Dallas key. This physical feature expands the application compatibility widely.
View-angle adjustableUsers only need to press the bottom of the customer display. The display will rotate to the angle users prefer it to be. This intellectual designing provides more comfort to customers and saves space for machine.
Easy-disassemble to Hard Disc & Power AdaptorThe Hard Disc and Power adaptor are buried in the slot at the bottom of the cabinet. Users could change them easily only by turning over the machine. All plugs are well designed with concepts of users friendly.
Optional VFD pole displayIt provides large view angle, multiple languages can be selected easily, Settings can be done by various commands.
SPECIFICATION
| SYSTEMS |
CPU Support: Intel ATOM D525 CPU 1.80GHz Memory: 1 x DDR3 2GB Network: RTL8168DE PCI-E Gigabit Ethernet NIC Power Supply: DC12V5A PC & DC24V PRINTER Dimension: 371x370x150mm(WxDxH) HDD: SATA 320G 2.5” |
| I/O PORTS |
USB: 4 x USB 2.0 port Serial Port: 3 x DB-9 (COM 1/2/3) PS/2: 1 x PS/2 port LAN: 1 x 10/100/1000 Mbps Audio: Interface x 2 VGA: 1 x DB-15 VGA Interface Cash Drawer: 1 x RJ11 Cash drawer port (12V/24V) |
| DISPLAY |
Viewing Angle: 15 ~ 18 degree adjustable LCD: 15\" TFT LCD Max. Resolution: 1024 x 768 Touch Screen: 5-wires resistive 20,000,000 times touch life |
| ENVIRONMENT |
Operation Temperature: 0~45℃ Storage Temperature: -20~60℃ Humidity: 20~90% |
| PRINTER |
Mechanism: 80mm Thermal Speed: 200mm/sec (MAX) Paper Width: 58mm/80mm adjustable Paper Diameter: 60mm Auto Cutter: Full cut/Partial cut selectable |
| Customer Display | Angel adjustable from 19.5 to 71.5 degree 10 digital LED or 20 digital LCD |
| Display Panel | 2X20 LCD or 2X20 VFD |
| Optional |
Magnetic Card Reader Track 1 2 3 Dallas Key 4 keys |
DOWNLOAD
Catalogue Manual Driver Service manualZQ-P1580
