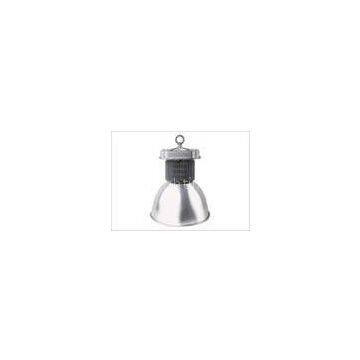

120W COB 23V Warm White Industrial LED High Bay Lighting ROHS / C-TICK / SAA

120W COB 23V Warm White Industrial LED High Bay Lighting ROHS / C-TICK / SAA thumbnail-1
120W COB 23V Warm White Industrial LED High Bay Lighting ROHS / C-TICK / SAA photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YICAI/OEM
Place of Origin:
China
Model Number:
YC-HB120-01
Contact Supplier Request Quote Chat Now
Shenzhen Yicai Lighting Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YICAI/OEM
Place of Origin China
Model Number YC-HB120-01
Delivery Time:10-20days
Certification:CE/ROHs/SAA/C-Tick

120W COB Meanwell Bridgelux Led High Bay Lighting Fixtures for Warehouses

Quick Detail:

Model Name: YC-HB120-01 Color temperature:3000K/4000K/5000K/6500K CRI: Ra> 80 Light efficiency:>85LM/W Input Voltage: AC90 ~ 305V LED Brand: American Bridgelux 45mil Certification:CE/ROHS/C-TICK/SAA Thermal Conductivity of thermal grease: >5.0W/m.k Beam Angle: 45° /90°/ 120° Lumen Effiency:above 90lumens/watt Warranty: 5 Years Proection Rate: IP42/IP65 Finishing: Silver

Product features:

►High Ra COB LED with Bridgelux LED chip,ultra bright
►AC90V to 305V Input voltage are available to meet different installation condition.
►Adopt Taiwan Meanwell power to ensure the lamp work better
►Unique patented thermal management design to ensure excellent heat dissipation
    and long lifespan of LEDs
►Changeable beam angle and CCT 2700K-6500K available
►Extremely light weight to ensure safety use and installation
►Available with aluminum reflectors with different beam angles
►IP65 rating are available for various applications
►Highly energy saving, 60% over metal halide lamp
►Environmental-friendly, no UV, no Mercury or other Hazardous substances

Certification:

Parameters:

Lamp Material Aluminum Colr index Ra>80
Beads type COB CCT 2700~6500k
Brand chip Bridgelux IP Rating IP42/IP65
Input voltage 90~305V Storage temperature -20°C~+45°C
Frequence 47~63Hz Surface temperature 50°C(test in 25°C)
Power Factor >0.93 Lifespan 50,000 hours
Power consumption 120W Lamp Size Φ500*485mm
Power efficiency >93% Box Size 25.5*25.5*35cm
Beam Angle 45°/90°/120° QTY/Box 1PCS
Luminance

10300±50lm

Box Weight 5.1KG

Lamp size:

Package of reflector :

Reflecotr angle 45° 90° 120°
Lamp size Φ420*250mm Φ500*190mm Φ500*140mm
Box size 44*44*40cm 53*53*25cm 53*53*34cm
Box weight 2KG 2.2KG 2.3KG
QTY/Box 10PCS 10PCS 10PCS

Product Details :

Application:

Warehouses & Production workshops
Shopping malls & Indoor stadiums
Toll and petrol stations and other industrial and commercial lighting purposes
